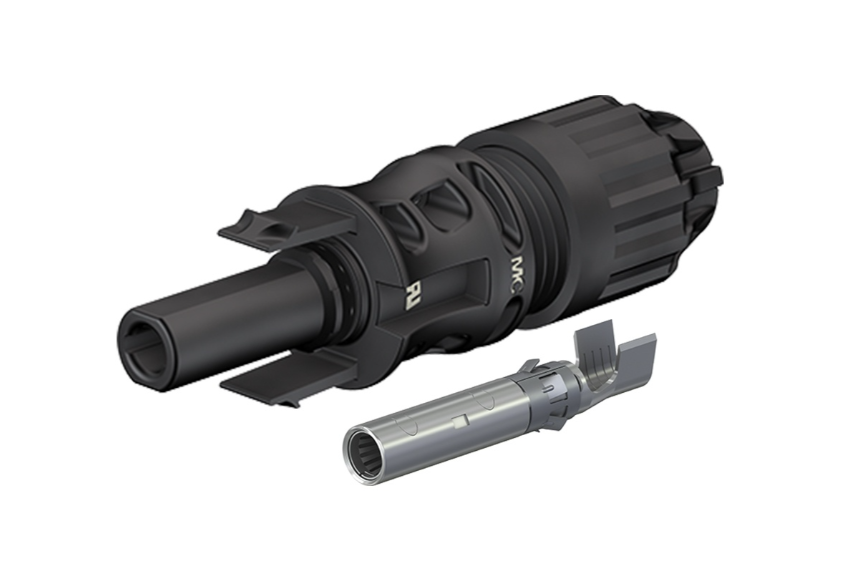

The original MC4 Evo-2A guarantees high performance even in harsh environment.
Internationally certified with IEC, UL, JET, cTÜVus. Approved for DC 1500 V (IEC, JET), DC 1500 V (UL) unrestricted access. MULTILAM Technology, has proven the quality and durability several 100 million times since 2004. Suited for all climatic environments due to UV resistance, ammonia and high IP class (IP68). Mating compatibility with MC4 connector family.
Features
Internationally certified with IEC, UL, JET, cTÜVus.
Approved for 1500 V DC (IEC, JET, UL) unrestricted access
MULTILAM Technology
Suited for all climatic environments
Resistance to UV, ammonia, and high IP class (IP68).
Mating compatibility with Original MC4 connector family.
Specifications
1500V
45 A (4.0 mm² / 12 AWG)
53 A (6.0 mm² / 10 AWG)
Cable OD: 4.7-6.4mm
Conductor Size: 4-6mm²
IP68
