The Mean Well DDR-120A-48 is a compact, industrial-grade DC-DC converter designed to convert a 9–18V DC input into a stable 48V DC output. It is ideal for powering 48V communications, networking, security and industrial equipment from a nominal 12V battery or DC power system.
Providing up to 100.8W of continuous output power at 2.1A, the converter also supports a 150% peak load of up to 150W for three seconds. Its output voltage can be adjusted between 48V and 56V DC, providing flexibility for equipment requiring a controlled higher-voltage supply.

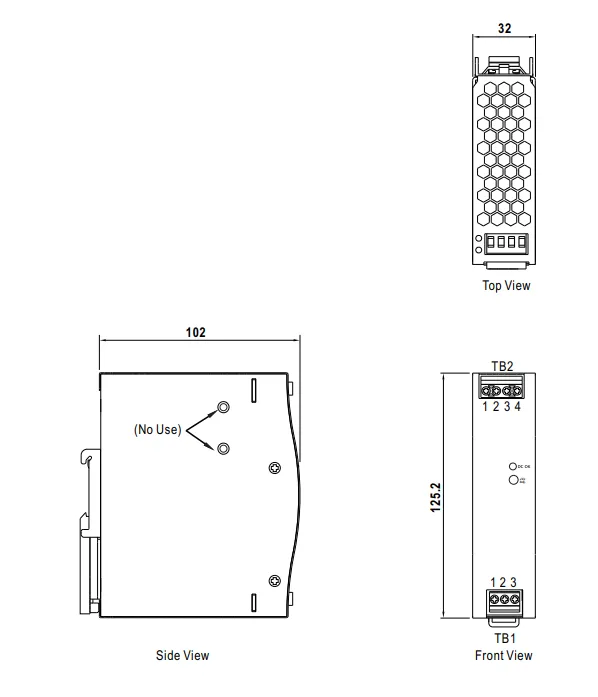

The ultra-slim 32mm DIN-rail housing allows the converter to fit neatly inside control cabinets and powered enclosures. Its fanless design, wide operating-temperature range and comprehensive protection features make it well suited to demanding commercial and industrial applications.
Integrated Protection
- Short-circuit protection
- Overload protection
- Output over-voltage protection
- Input reverse-polarity protection
- Input under-voltage protection
Applications
- 12V-to-48V DC power conversion
- Telecommunications and data equipment
- Network switches and wireless equipment
- Security and surveillance systems
- Industrial automation and control systems
- Remote monitoring installations
- Vehicle and transport systems
- Battery-powered control enclosures
- Voltage-drop compensation over long cable runs
