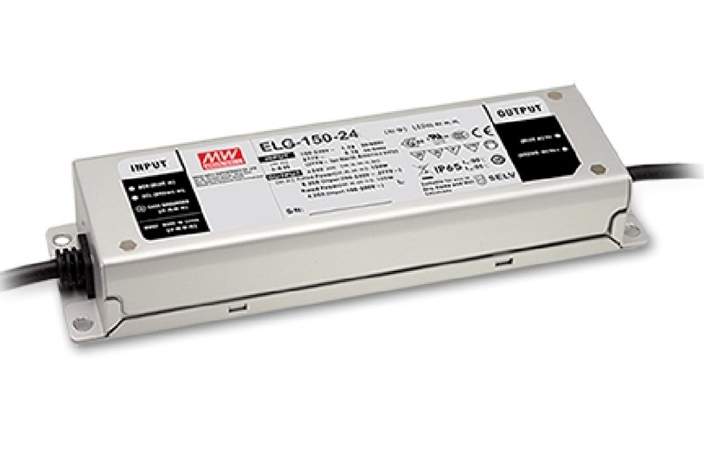

- ELG Series 150W Power Supply - 24V
| Series | ELG |
| Operation Mode | Constant Voltage |
| Power Rating | 150 Watt |
| Output Voltage (DC) | 24V |
| Rated Current | 6.25A |
| No. of Outputs | 1 |
| Waterproof Rating | IP 67 |
| Input Voltage | 100 ~ 305vAC |
| Dimming Control | No |
| Operating Temp | -40 ~ 90℃ |
| Dimensions (mm) | L219 * W63 * H35.5 |
| Standards | RCM | CE | UL | CCC |
| Warranty | 3 Year |
| DATASHEET (ELG 150 SERIES) | Download |
|---|
Constant Voltage (CV) is designed to maintain a fixed voltage level during operation regardless of "current" conditions. Similar to how a battery or generator works. LED Strip Light , MR16 and G4 Lamps are examples of a Constant Voltage load. If your lamp has a fixed voltage input e.g. 12V then it is likely to be compatible with a CV driver.
Constant Current (CC) is an operation mode that maintains a fixed current flow through an LED array, the supply voltage will change depending on operating conditions. A domestic style LED Down Light, Commercial LED High Bay and Panel Lights are common examples that use CC drivers.
Constant Voltage
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Typical lifetime>50000 hours
3 years warranty
