MC4 Connector Set

http://www.dualcom.co.nz/web/image/product.template/66/image_1920?unique=6f95a6c

$ 5.22$ 6.00 6.003 NZD

$ 6.00

Not Available For Sale

    This combination does not exist.

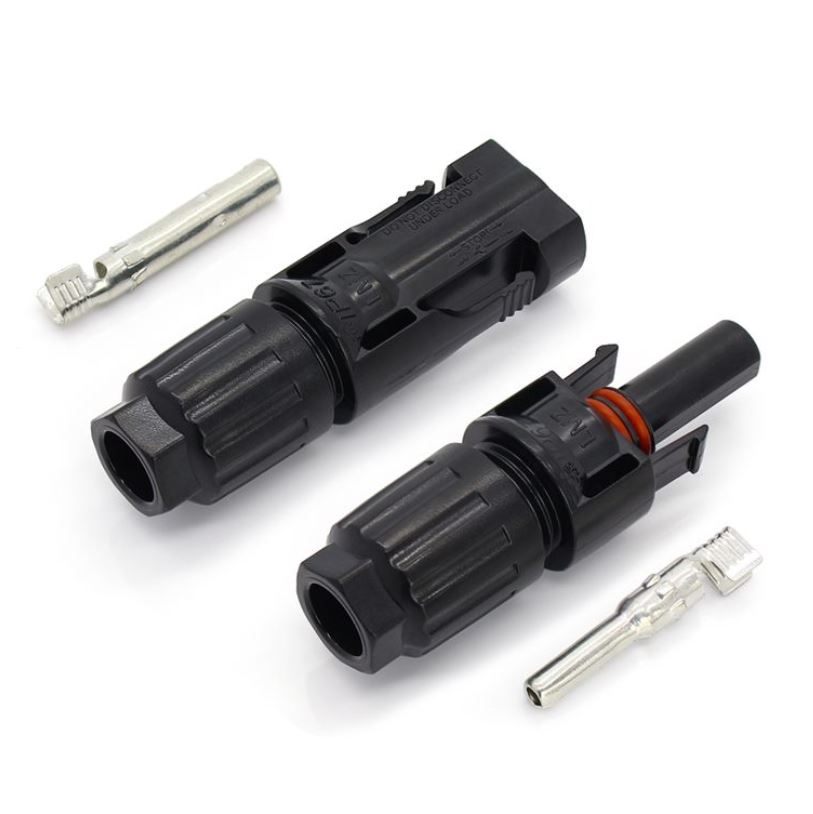

    MC4 Connector set. Package includes Plug , Socket and Crimp terminals suited to a 4 - 6mm² cable size. - Time savings for installers - Quick Connect - IP67 Waterproof

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    SOL-MC4-SET

    Specifications

    Connector Type MC4 (solar)
    Termination Method Crimp | Quick Connect
    Gender Female | Male
    Voltage Rating 1000V
    Current Rating 30A
    Cable Size 2.5 ~ 6mm²
    Contact Material Copper | Tin Plated
    Number of Connections 1
    Number of Potentials 1
    IP Rating IP67
    Insulation Material Phenylene Oxide (PPO)
    Flame Class UL94V-0
    Operating Temp (min) - 40°
    Operating Temp (max) + 90°
