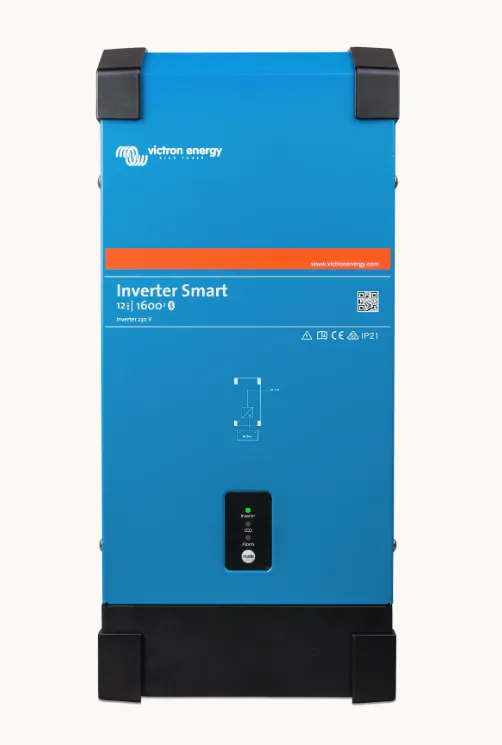

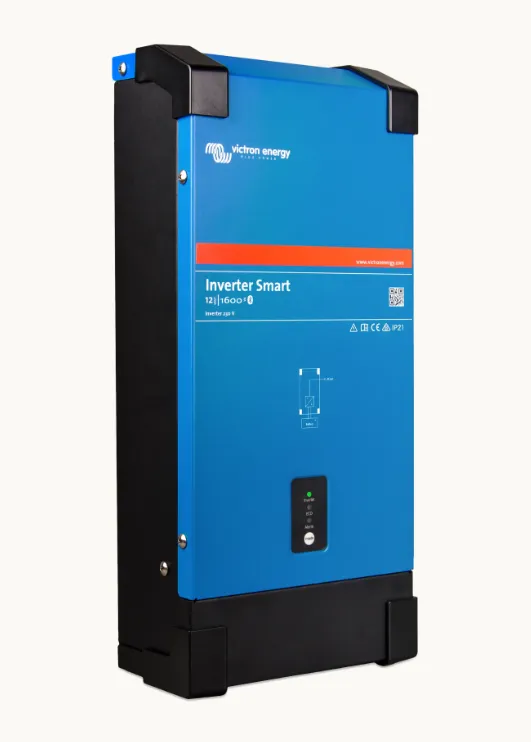

The Victron Phoenix Inverter Smart 12/1600 is a high-performance pure sine wave inverter designed to convert 12V DC battery power into reliable 230V AC electricity. Built for demanding applications, it provides clean, stable power for household appliances, electronic equipment and other AC loads in caravans, motorhomes, boats, off-grid systems and commercial installations.
Delivering 1600VA (1300W continuous at 25°C) with a 3000W peak power capability, the Phoenix Smart inverter can accommodate a wide range of appliances, including equipment requiring additional power during startup.
Featuring Victron's proven toroidal transformer technology, the inverter delivers a high-quality pure sine wave output with excellent reliability and stable voltage and frequency. Its robust metal enclosure and fan-assisted cooling make it suitable for professional installations.
Built-In Bluetooth Monitoring & Configuration
Integrated Bluetooth connectivity allows the inverter to communicate directly with the free VictronConnect app, providing convenient monitoring and configuration from a compatible smartphone or tablet.
- Monitor DC input voltage and AC output voltage
- View inverter load and operating status
- Configure low-battery voltage alarms and shutdown thresholds
- Adjust AC output voltage and frequency
- Enable and configure ECO mode
- Configure the programmable alarm relay
- Review system alarms and diagnostic information
- Energy-Efficient ECO Mode
The Phoenix Smart inverter features an intelligent ECO mode designed to minimise battery consumption when AC equipment is not in use.
When enabled, the inverter enters a low-power standby state when the connected load falls below a configurable threshold. It periodically checks for demand and automatically resumes normal operation when a sufficient load is detected.
With standby consumption as low as 0.6W in ECO mode, this feature is particularly beneficial for battery-powered installations where conserving stored energy is important.
Remote Monitoring Capability
The integrated VE.Direct communication port allows connection to compatible Victron monitoring equipment, including the Cerbo GX.

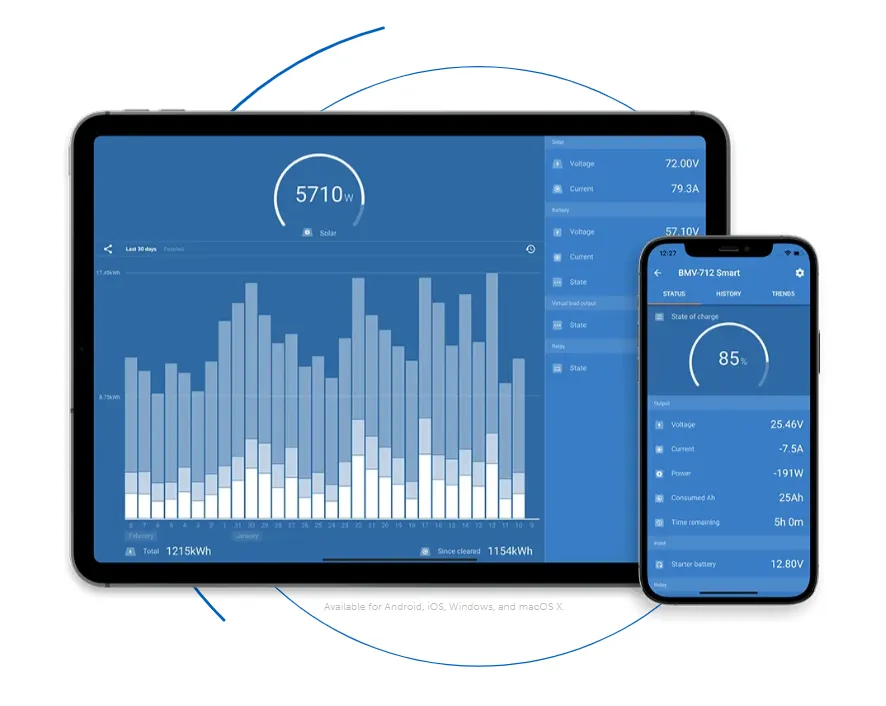

When connected to a compatible internet-enabled GX device, inverter operating information can be accessed remotely through the Victron Remote Management (VRM) Portal, making it suitable for remote power installations and off-grid infrastructure.
