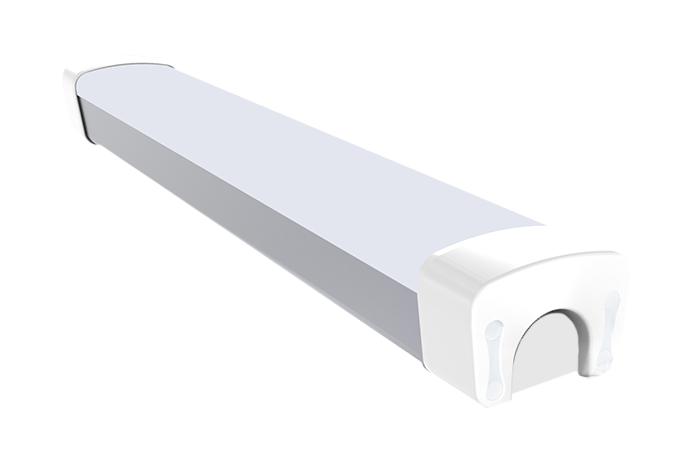

ELV (GEN4) IP65 Batten Light - 600MM

ELV (GEN4) 600MM Batten Light - 10-32VDC, 2000LM, 20W, CCT5000K

$ 145.00 $ 145.00

Add to cart
Buy now
You have already submitted a query for this product today. Add to wishlist

These ELV Batten Lights are suited to a number of applications where 12V or 24VDC is used - such as battery / off-grid systems or where step down transformers are utilized to make routine maintenance easy, especially if the technician is not a certified AC electrician. Wide DC Input Voltage, IP65 Waterproof, Impact Resistant IK08. Integrated LED PCB, "optional" zero gap surface mount brackets.

Typical applications include : Public Utility Block, Off-Grid Battery Systems, Engine Room Lighting, General Extra Low Voltage DC applications.

Contact Us
DATASHEET (ELV GEN4) Download
IK Rating or “Impact Protection” (the K is from 'Kinetic' to differentiate from IP rating) is defined in international standards and indicates the level of resistance an electrical enclosure provides against mechanical impact.
Extra low voltage (ELV) means voltage of 50V or less (AC RMS), or 120V or less (ripple-free DC).
Protected against 5 joules impact - Equivalent to impact of 1.7kg mass dropped from 300mm above impacted surface.
No, However it is important when installing with a step down transformer to make sure the transformer is SELV compliant (Separated or Safety Extra Low Voltage).
Separated or Safety Extra Low Voltage (SELV) system is an extra low voltage electrical circuit that is electrically separated from other circuits that carry higher voltages, isolated from earth and from the protective earth conductors of other circuits.

  • Extra Low Voltage (ELV)

  • Wide Input Voltage (10-32vDC)

  • IK08 Impact Resistant

  • IP65 Waterproof Rating

  • High Lumen Per Watt
