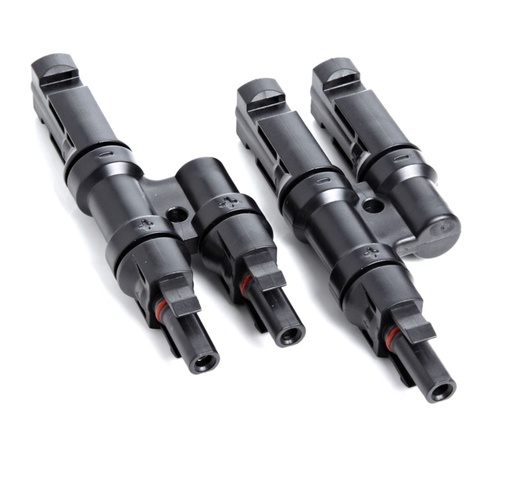

[SOL-MC4-H] MC4 H Branch Connector Set

$ 20.00 $ 17.39

$ 25.00

Not Available For Sale

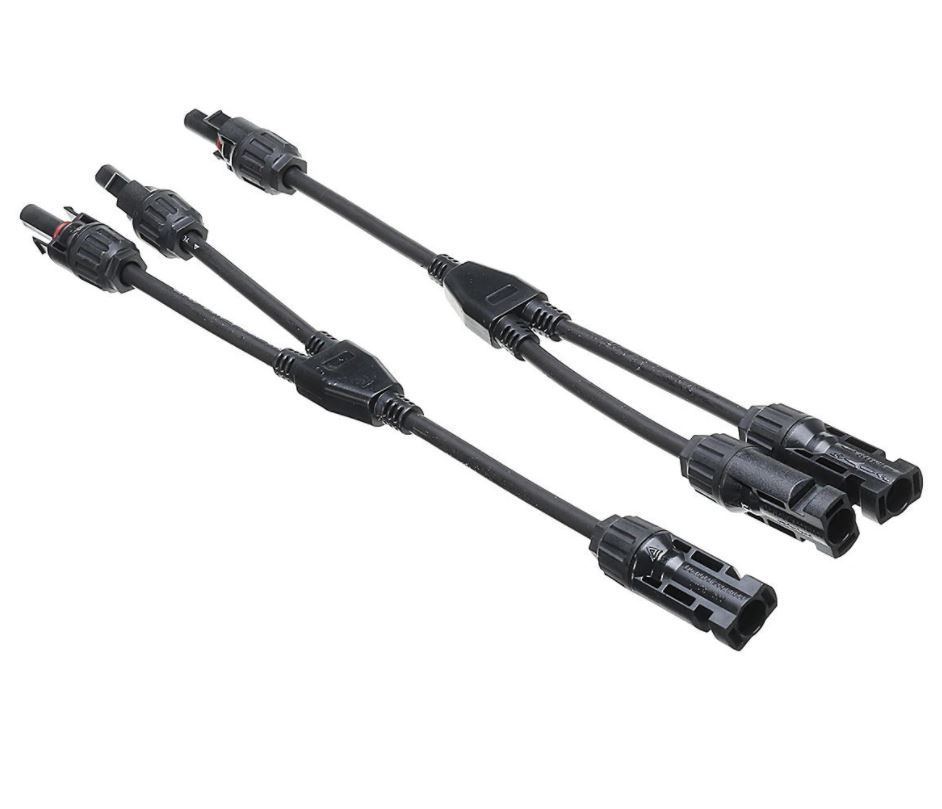

MC4 Y Branch Connector Set

https://www.dualcom.co.nz/web/image/product.template/67/image_1920?unique=6f95a6c

$ 21.74$ 25.00 25.001 NZD

$ 25.00

Not Available For Sale

    This combination does not exist.

    MC4 Y Branch Connector set. Used to Parallel solar panels pre-fitted with MC4 connectors. Package includes 1 x female to double male (F/M/M) Branch, and 1 x male to double female (M/F/F) branch. - Time savings for installers - Quick Connect - IP67 Waterproof

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    SOL-MC4-Y

    Specifications

    Connector Type MC4 (solar) | Branch Connector
    Termination Method Quick Connect
    Gender 2 Female to 1 Male | 2 Male to 1 Female
    Voltage Rating 1000V
    Current Rating 30A
    Contact Material Copper | Tin Plated
    Number of Connections 3
    Number of Potentials 1
    IP Rating IP67
    Insulation Material Phenylene Oxide (PPO)
    Flame Class UL94V-0
    Operating Temp (min) - 40°
    Operating Temp (max) + 90°
