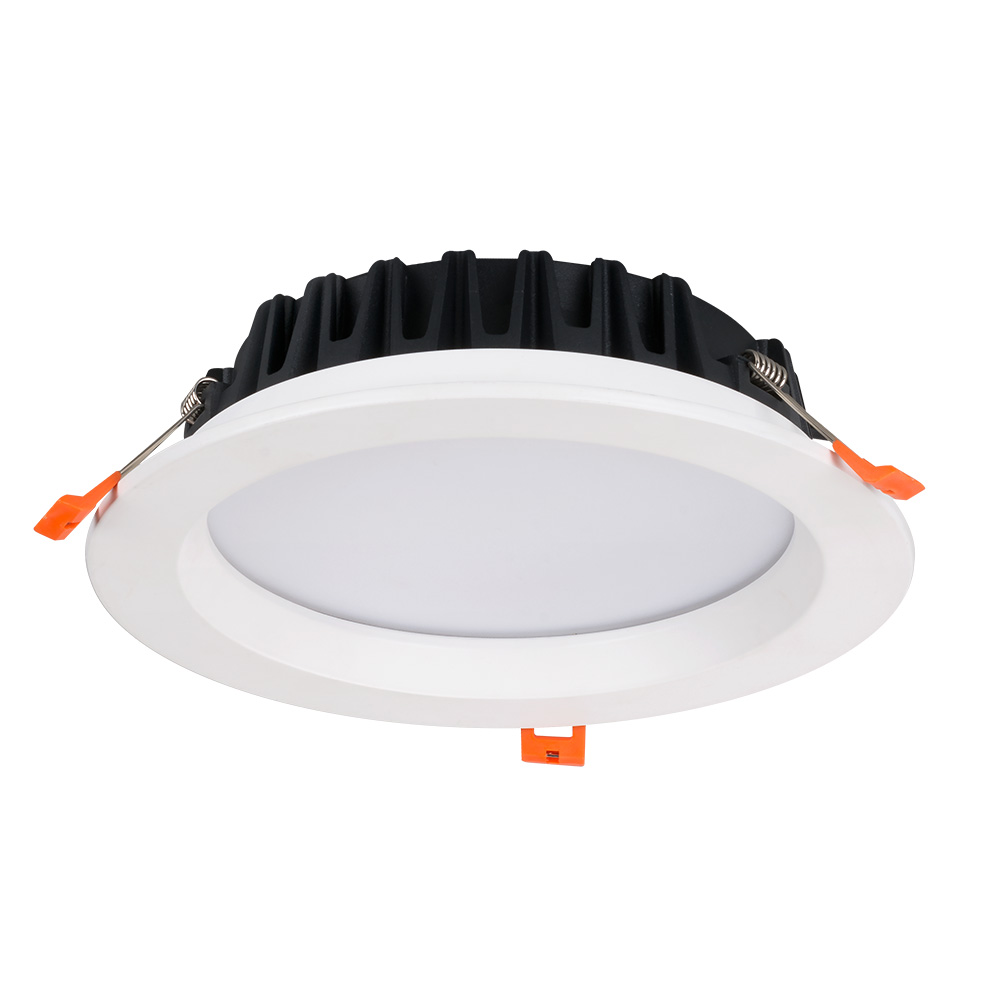

NDL Series 20W Down Light
https://www.dualcom.co.nz/shop/20w-led-downlight-57 https://www.dualcom.co.nz/web/image/product.template/57/image_1920?unique=71e8a23DUALCOM
Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.
DL-NDL20W-190-4K
Specifications
Color Temp Options | 4000K (natural) |
Wattage | 20W |
Input Voltage (AC) | 200 - 240V |
Lumens | 1650 |
CRI | >80 |
Beam Angle Options | 90 Degree |
Dimmable | Yes |
IC Rating | IC 4 (Insulation Covered) |
Base Type | Recessed |
Color Finish | White |
IP Grade | IP44 |
Dimensions (mm) | Ø 190 * 45H |
Hole Cutout (mm) | Ø 160 ~ 175 |
Material | Aluminum | Polycarbonate (PC) |
Yes. These are IC4 certified which means a recessed luminaire that can be abutted against normally flammable materials, including building insulation, and can be covered in normal use. Building elements, building insulation or debris have restricted access to the heated parts of the luminaire. This classification of recessed luminaire is effectively a sealed unit that has a restricted flow of air between the habitable room the luminaire emits light into and the void/space where the main body of the luminaire is located.
IC-F and IC-4 are essentially the same. The classification system has recently been updated so all newer light models are to be tested and certified IC-4. Any lights rated under the old system IC-F, retains the old rating.
