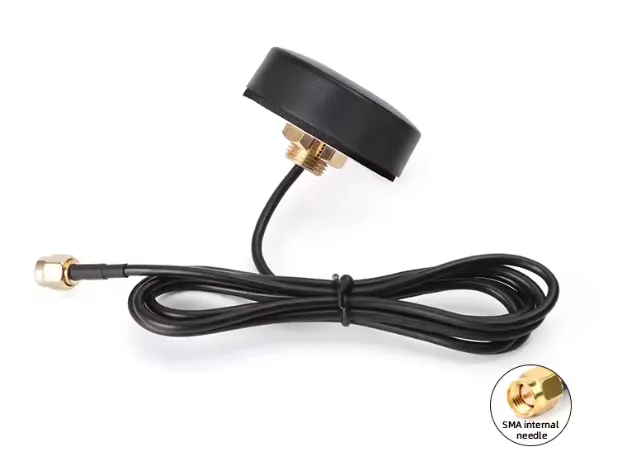

Compact external 4G antenna designed for mounting on outdoor cabinets and equipment enclosures. Covering 700–2700 MHz, this antenna allows the aerial to be positioned outside a metal enclosure, helping reduce signal shielding and improve cellular reception.
Supplied with a 1-metre cable and SMA male connector, it is suitable for the Victron GlobalLink 520 and other compatible cellular monitoring and communications equipment.
Features:
- Frequency range: 700–2700 MHz
- Antenna gain: 5 dBi, manufacturer rated
- Connector: Standard SMA male
- Cable length: 1 metre
- Design: Compact round cabinet-mount antenna
- Weather protection: Waterproof design for outdoor installation
Applications: Solar monitoring, remote telemetry, camera power cabinets and cellular communications
Installation note: When used with a GlobalLink 520, connect the antenna and set the antenna selector towards the SMA connector to enable the external antenna. Seal the cabinet mounting point appropriately to maintain the enclosure’s weather protection.
