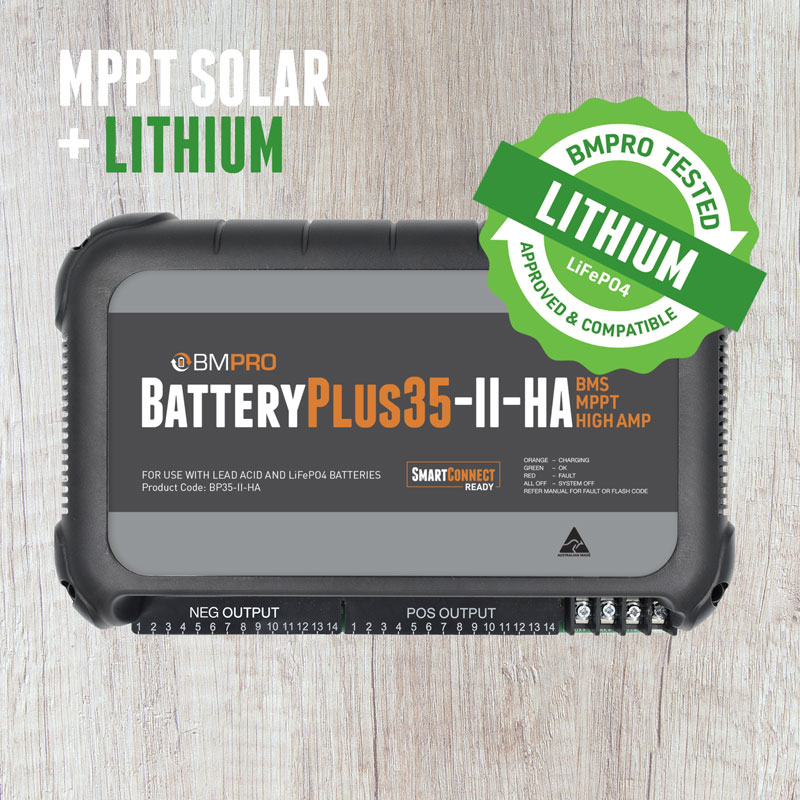

BATTERYPLUS35-II-HA

$ 1,086.96$ 1,250.00 1250.0040000000001 NZD

$ 1,250.00

This combination does not exist.

BatteryPlus35-II-HA is a complete high amp battery management system designed to support transition of caravans to lithium batteries. This all in one power solution combines a 35A power supply for 12V loads, 30A multi-stage AC charging and 30A Solar MPPT regulation as well as a host of battery protection features. Connect the unit via CAN bus to the Trek battery monitor or to Odyssey touch screen via the OdysseyLink to monitor the status of your battery and to control your caravan features and functions or use it to connect to the BC300 to monitor high currents via CommLink. BatteryPlus35-II-HA is pre-cabled with a permanent mains power supply cord for use with 240V or 110V input power – great for powered sites.

BMPRO

Born by the innovated spirit of our parent company SETEC, with 50 years power solutions in Australia, bred in Melbourne and inpired by the great Australian outdoors. We are number one in RV Power Management. We are BMPRO, your battery management professionals.

SKU: BMPRO-BP35PLUS-II-HA

Specifications


Charge Current (Solar)	30A
Input Voltage (AC)	110-240vAC
Charge Current (AC)	30A
Input Voltage (Solar)	15 - 25V (max)
Battery Chemistry	AGM / WET \| Lithium (LiFeP04)
Smart Connect Ready	Yes
Low Voltage Disconnect	10.5V
Battery Connect after LVD	12.8V
Cooling	Thermally Controlled Fan
Weight (Kg)	2

DATASHEET (BP35 HA/SR-II)	Download
MANUAL (BP35 HA/SR-II)	Download

How do I connect solar panels to my BP35 or J35?

If your BP35 or J35 unit has solar in built, the positive and negative leads from your solar panels are connected directly to the solar input and output on the solar distribution board. The solar regulator is in built for this.

Why does the power not come back instantly when I deactivate the remote switch on the BP35 when using DC power?

When the BP35 is powered solely by DC power, there are physical limitations within the electronics, which mean that the unit will only start supplying power after approximately 30-45 seconds. If powered by AC power, these outputs such as lights etc. will turn on immediately.

What solar panel voltage will the BP35 / J35 handle?

The max input voltage for the built-in regulator is 25V, so be sure to check the "Voc" value of your solar panel does not exceed this.

KEY FEATURES

Total output current 35A
30A multistage battery charger
Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
Electronic resettable fuses
CAN bus connection for BMPRO accessories
In-built battery management system
Solar and Aux Blending
Auxiliary DC input
Load current limit
Low voltage disconnect
Compatible with lead acid and lithium (LiFePO4) deep cycle batteries

The unit also features a 40A rated uncontrolled +BRK battery output. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A.

Use it to connect, for example:

Proactive Electronic Stability Control SwayControl
Emergency Trailer Break-Away Safety System TrailSafe
Heaters
Stereo memory

Designed and manufactured in Australia, the slim and sturdy BatteryPlus35-II-HA is fully equipped to charge the current generation of deep cycle batteries. Connect solar panels to the battery management system and power your adventures with renewable energy. Swap your caravan battery to the LiFePO4 deep cycle and harness the benefits of lithium. This high amp battery management system is specially designed to ensure the best performance and longevity of lithium batteries.

Accessory Products

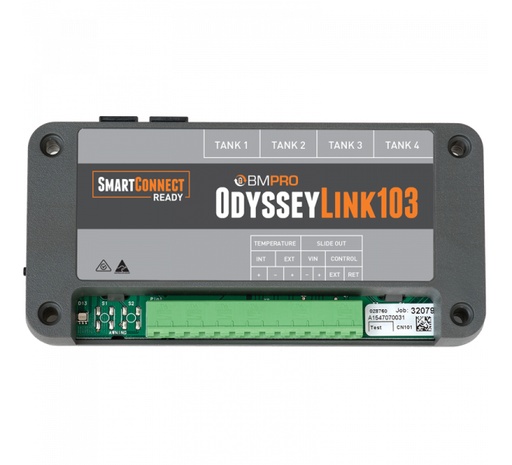

OdysseyLink103

$ 325.00 $ 282.61

$ 1,250.00

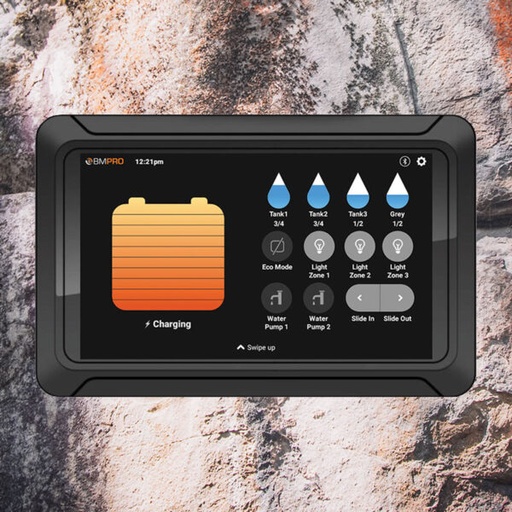

ODYSSEY
