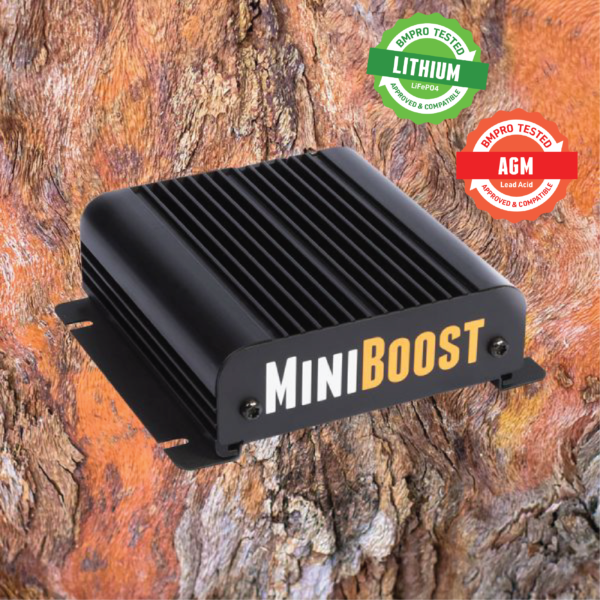

- BMPRO MiniBoost
| Charge Type | Constant Voltage | Constant Current |
| Input Voltage (DC AUX) | 10 - 16V |
| Charge Current (DC-DC) | 8~18A |
| Battery Chemistry | Flooded / AGM / WET |
| Battery Voltage | 12V |
| Dimensions (mm) | 157 x 131 x 39 |
The MiniBoost will not connect directly to a solar panel. Refer to the MiniBoostPRO to use with solar input.
The MiniBoost can be connected directly to the battery but all loads must be fused.
The MiniBoost has four connections. Connect orange to batt+ input, connect white to batt- input, connect red to batt+ (battery to be charged) and black to the batt-.
The MiniBoost is capable of charging multiple batteries installed in parallel.
It can serve on the auxiliary input to other battery management systems or can be directly connected to a battery. The MiniBoost will also work with a Genius and ST series and may also work with with other charging systems.
If the vehicle remains connected, the vehicle battery will be drained, and the secondary battery may be overcharged.
The MiniBoost can be connected to the auxiliary input of the BP35, J35 or ASPERO. Initially when connected, the MiniBoost will provide a low current output until it detects a valid battery connected to the BP/J35/ASPERO. If the battery is not detected, the MiniBoost will shut down.
It is recommended to have a suitably qualified person wire in the relay into your car and the MiniBoost as close as possible to the house battery to ensure optimal performance
Charges 12V RV battery whilst driving
Multi-stage DC-DC charger
Suitable for AUX/secondary battery setup
Multi-Chemistry charging profiles
LiFePO4 (Lithium) compatible **
Voltage or Smart Alternator
Designed for installation with BP35, J35 & ASPERO
