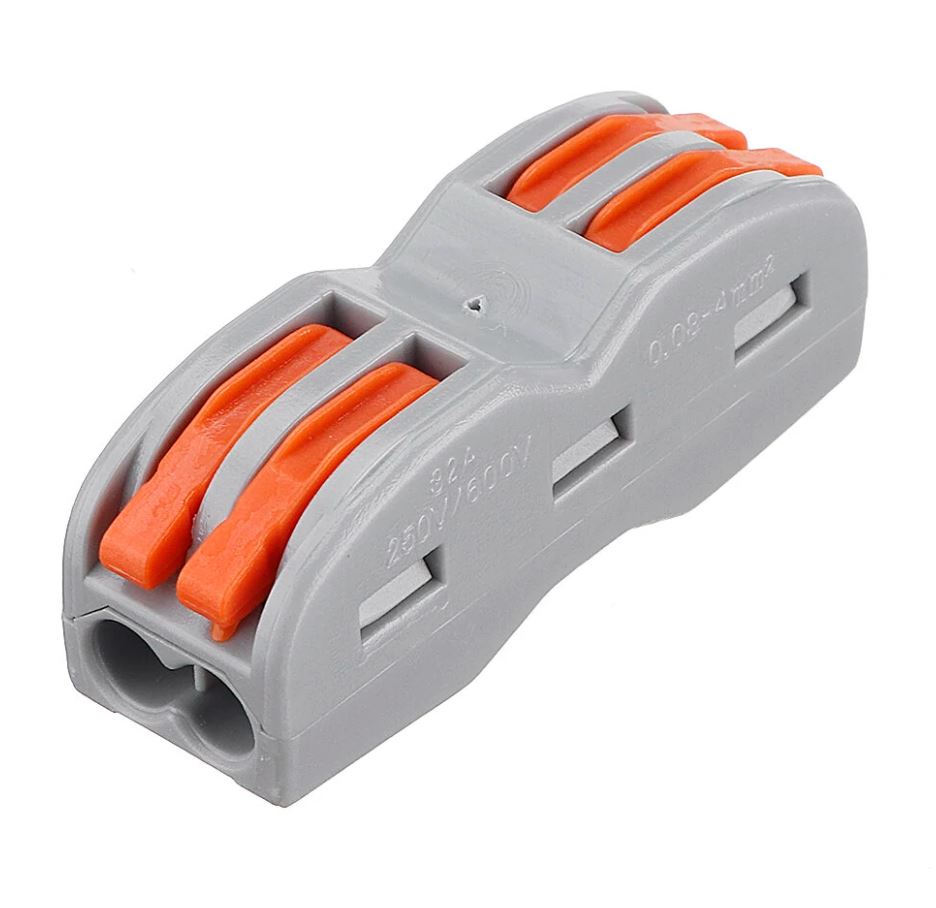

Inline Wire Connector (2 Way)

http://www.dualcom.co.nz/web/image/product.template/63/image_1920?unique=a249077

$ 0.78$ 0.90 0.897 NZD

$ 0.90

Not Available For Sale

    This combination does not exist.

    Inline leaver action 2 Way wire connector - Time savings for installers and device manufacturers. - Quickly install devices with higher levels of power consumption. - Safely install long cable runs with larger conductor cross sections. - Mounting carrier for installation conforming to standards

    Contact Us
    DC222-212

    Specifications

    Connector Type Inline
    Termination Method Spring Cage
    Voltage Rating 450V
    Current Rating 32A
    Rated Surge Voltage 4 kV
    Nominal Cross-Section 4 mm²
    Cable Size 0.8 ~ 4mm²
    Number of Connections 2
    Number of Potentials 2
    Insulation Material Polyamide (PA66)
    Dimensions 39 * 14.5 * 12.5

    • Leaver up action, insert a conductor and push the leaver back down

    • Stainless connectors

    • Easily terminate conductors from 0.8 to 4 mm²
