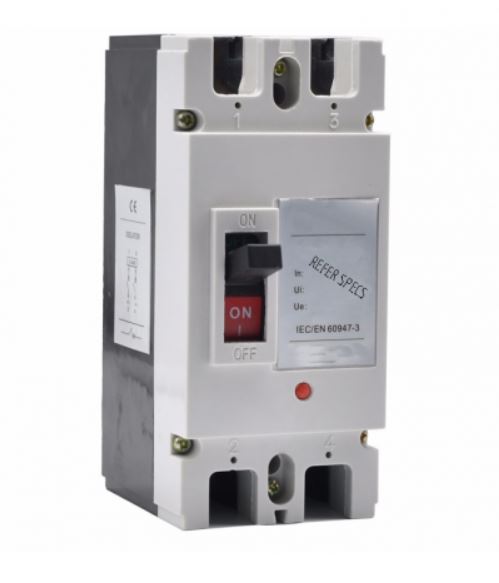

High Current DC Circuit Breaker (250A)

https://www.dualcom.co.nz/web/image/product.template/297/image_1920?unique=aad5c7f

$ 186.96$ 215.00 215.00400000000002 NZD

$ 215.00

Not Available For Sale

    This combination does not exist.

    High Current DC Circuit Breaker - Typical for Solar Off-Grid Systems needing high current fault protection. Commonly installed between the Inverter and battery bank.

    Contact Us
    SOL-ISO-250A-550VDC-2P

    Specifications

    Voltage Type DC Voltage
    Mounting Type Surface Mount
    Voltage Rating 12 - 550V
    Current Rating 250A
    Number of Connections 2
    Number of Potentials 2
    IP Rating IP20
    Insulation Voltage 1200V
    Rated Impact Voltage 8 KV
    Voltage Impulse Withstand 3.8 kV
    Resettable Yes
    Operating Temp (max) -45° ~ +70°
    Standards IEC60947-3/GB14048.3
