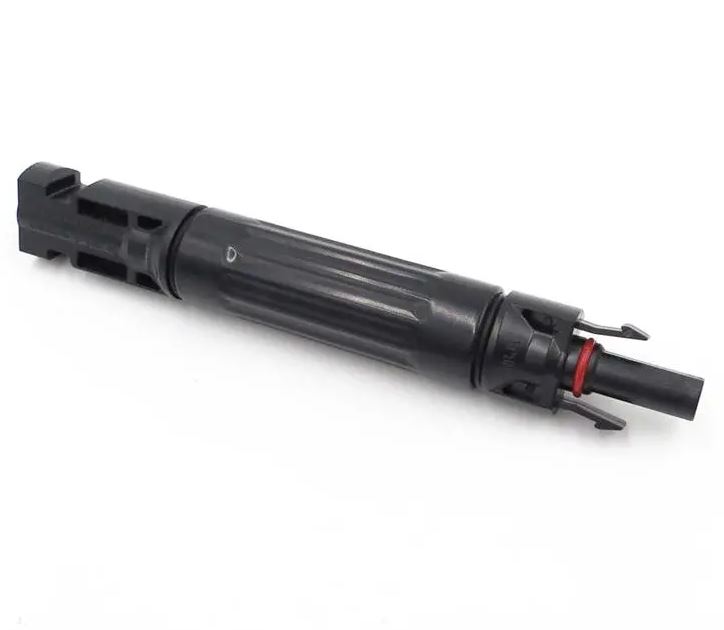

MC4 Inline Fuse Holder

https://www.dualcom.co.nz/web/image/product.template/69/image_1920?unique=afdcd5c

$ 12.61$ 14.50 14.5015 NZD

$ 14.50

Not Available For Sale

    This combination does not exist.

    MC4 inline fuse holder suitable for Photovoltaic systems. Compatible with 10*38mm Ceramic Fuses (fuse not included). - Time savings for installers - Quick Connect - IP67 Waterproof

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    SOL-MC4-FH

    Specifications

    Connector Type MC4 (solar)
    Supported Fuse Type 10x38mm (Midget Fuse)
    Fuse Included No
    Termination Method Quick Connect
    Gender Female to Male
    Voltage Rating 1000V
    Current Rating 30A
    Contact Material Copper | Tin Plated
    Number of Connections 1
    Number of Potentials 1
    IP Rating IP67
    Insulation Material Phenylene Oxide (PPO)
    Flame Class UL94V-0
    Operating Temp (min) - 40°
    Operating Temp (max) + 90°
    Dimensions 130 * 20

    Accessory Products

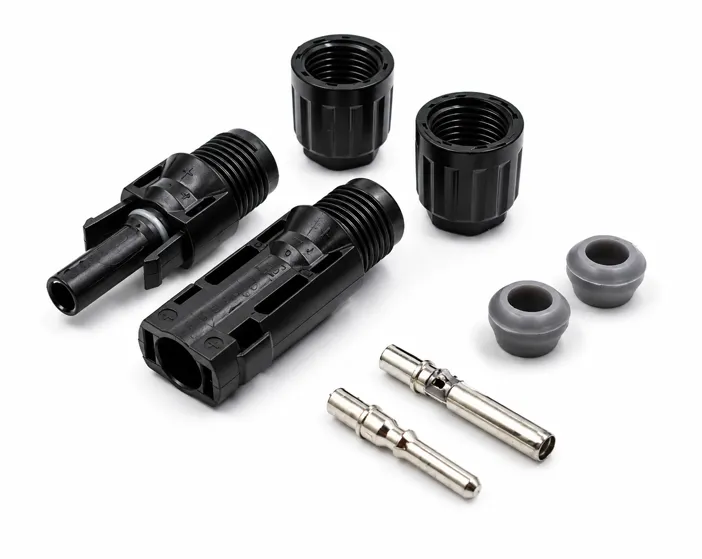

    [SOL-MC4-SET] MC4 Connector Set
