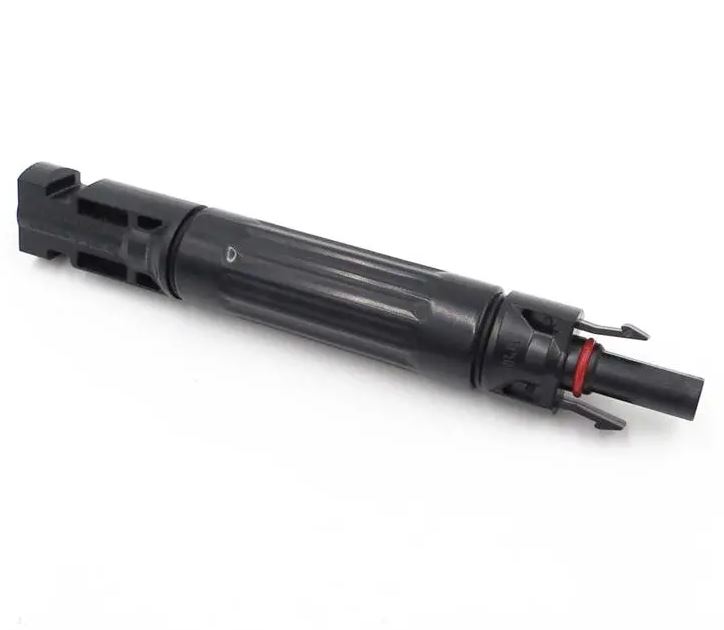

MC4 Inline Fuse Holder

https://www.dualcom.co.nz/web/image/product.template/69/image_1920?unique=fe22258

$ 12.61$ 14.50 14.5015 NZD

$ 14.50

Not Available For Sale

    This combination does not exist.

    MC4 Inline Fuse Holder (No Fuse Included), used to photovoltaic DC-side circuits. It integrates a fuse box with a standard MC4 connector, providing plug-and-play overcurrent protection. Its primary function is to prevent overheating and fire risks caused by reverse current or fault current in photovoltaic strings, making it a key component in enhancing the safety level of photovoltaic systems.


    Fuse holder is rated for ceramic fuses up to 30A and 1000vDC.


    If a fuse is required, please select one of the fuses from related products below.

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    SOL-MC4-FH

    Specifications

    Connector Type MC4 (solar)
    Supported Fuse Type 10x38mm (Midget Fuse)
    Fuse Included No
    Termination Method Quick Connect
    Gender Female to Male
    Voltage Rating 1000V
    Current Rating 30A
    Contact Material Copper | Tin Plated
    Number of Connections 1
    Number of Potentials 1
    IP Rating IP67
    Insulation Material Phenylene Oxide (PPO)
    Flame Class UL94V-0
    Operating Temp (min) - 40°
    Operating Temp (max) + 90°
    Dimensions 130 * 20

    Accessory Products

    [SOL-FUSE-10A] 10A PV Solar Fuse (Ceramic)
    10A PV Solar Fuse (Ceramic)

    $ 4.00 $ 3.48

    $ 14.50

    Not Available For Sale

    [SOL-FUSE-20A] 20A PV Solar Fuse (Ceramic)
    20A PV Solar Fuse (Ceramic)

    $ 4.00 $ 3.48

    $ 14.50

    Not Available For Sale

    [SOL-FUSE-30A] 30A PV Solar Fuse (Ceramic)
    30A PV Solar Fuse (Ceramic)

    $ 4.00 $ 3.48

    $ 14.50

    Not Available For Sale

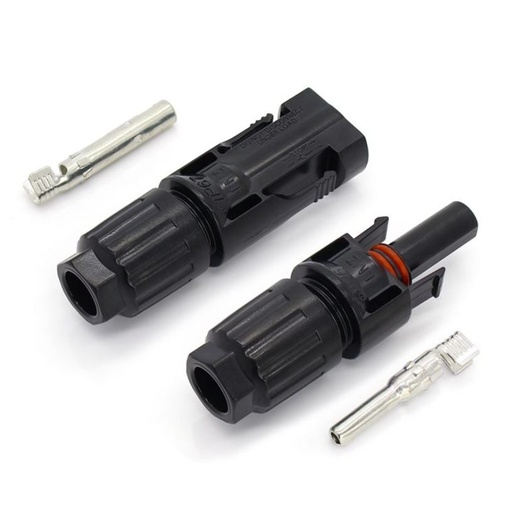

    [SOL-MC4-SET] MC4 Connector Set
