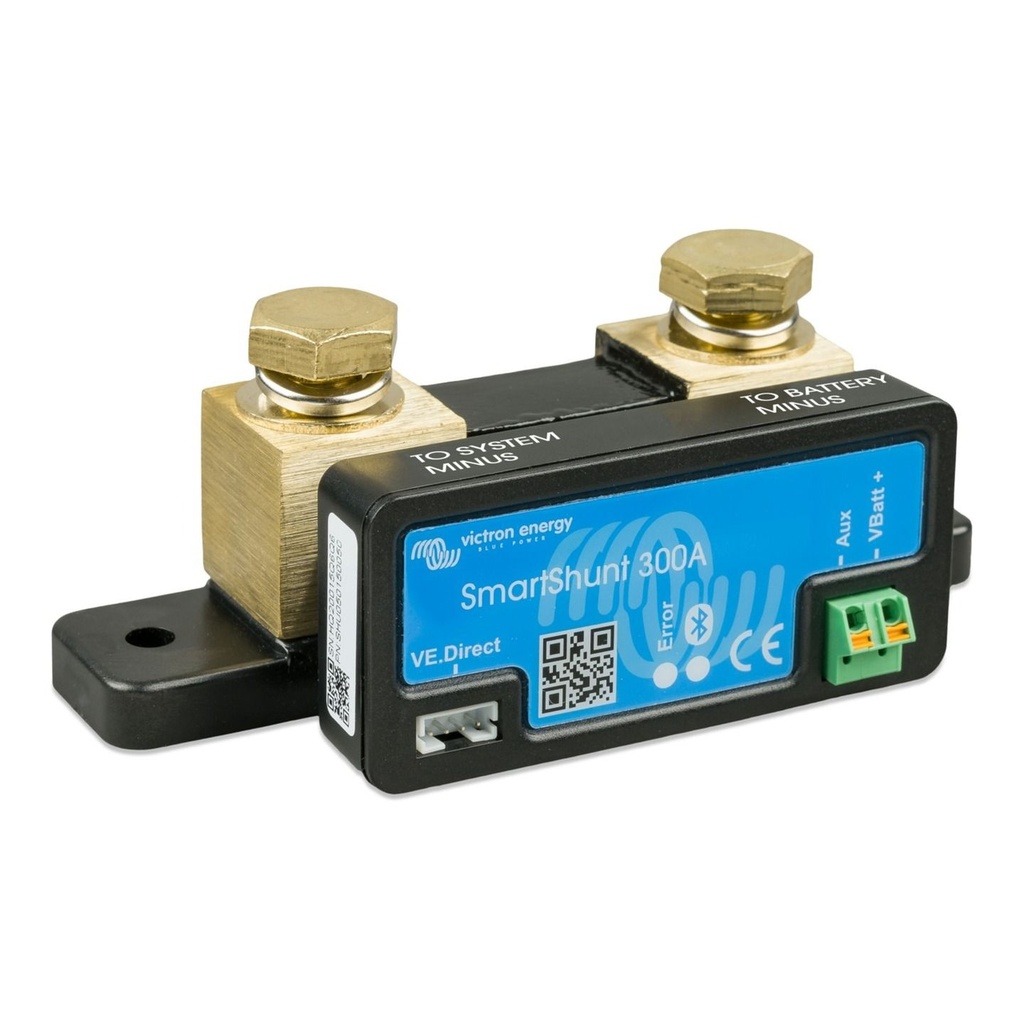

Victron SmartShunt 300A – Bluetooth Battery Monitor

Name: Victron SmartShunt 300A – Bluetooth Battery Monitor
SKU: VIC-SMARTSHUNT-300A
Price: 121.74 NZD
Availability: InStock

Monitor your battery’s charge level, power use and remaining runtime directly from your smartphone or tablet. The Victron SmartShunt 300A connects to the VictronConnect app via built-in Bluetooth, providing detailed battery information without a separate display.

View battery voltage, charge and discharge current, state of charge, consumed amp-hours and estimated time remaining. Historical data helps you understand battery usage and monitor performance over time.

Compact and easy to integrate, the SmartShunt is suitable for motorhomes, caravans, boats and off-grid power systems when installed in a dry, protected location.

$ 140.00

Add to cart

Buy now

Add to wishlist

System Compatibility	Stand Alone \| Victron SmartSolar
Input Voltage (DC)	8 - 70 VDC
Voltage Measurement Resolution	±1%
Current Measurement Range	300A
Current Measurement Resolution	±1%
Monitored Battery Capacity	1 - 9999Ah
Communication Method	Bluetooth \| VE.Direct
Operating Temperature	-20°C to 50°C
Dimensions (mm)	44 x 120 x 44

Datasheet (SmartShunt 300A)	Download
Manual (SmartShunt 300A)	Download

300A monitoring capacity for measuring battery charge and discharge current.
Built-in Bluetooth for monitoring and configuration through VictronConnect.
Detailed battery information, including state of charge, voltage, current and estimated runtime.
Historical data to help track battery usage and performance.
VE.Direct connectivity for integration with a compatible Victron GX device and remote monitoring through VRM.
Configurable auxiliary input for second-battery voltage, battery-bank midpoint voltage or an optional temperature sensor.
Suitable for lithium, AGM, gel and flooded lead-acid batteries.
Supplied with two fused battery-positive and auxiliary sensing leads.
