T8 LED Tube Light - 4FT (1200mm)

https://www.dualcom.co.nz/web/image/product.template/316/image_1920?unique=338d7c6

$ 33.91$ 39.00 38.996500000000005 NZD

$ 39.00

Not Available For Sale

    This combination does not exist.

    High performance LED Tube light - 110 Lumen per watt, rotatable and lockable end. External aluminum heatsink body for better performance and longevity . Complies with all NZ/AUS standards, and are designed with an energized end cap and short at other end - meaning they can be wired so it doesn't matter which way the tube is installed (see FAQ or call if you are unfamiliar with LED tube light wiring standards). Mercury free and easy to install, comes with starter replacement that acts as a HRC fuse for simple installation.

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    T8-1200-CW

    Specifications

    Color Temp Options 6000K (cool)
    Wattage 20W
    Input Voltage (AC) 100 - 265V
    Lumens 2200
    CRI >80
    Beam Angle Options 120 Degree
    Dimmable No
    Base Type T8 (tube)
    IP Grade IP20
    Dimensions (mm) Ø 30 * 1200
    Material Aluminum | Polycarbonate (PC)
    T8 Tube Wiring Diagram Download
    NO. For a T8 LED tube to work with standard wiring, the tube must have the internal driver one end and a direct short the other. This allows Line or Neutral at one end to flow to the other end of the tube via the fuse. This also means the tube can be installed eitherway without causing a fault. SEE DIAGRAM IMAGE OR DOWNLOAD TAB.
    The issue with wiring to one end only, is that if/when later on the tube is replaced - someone installing the wrong way round, it would cause a short circuit, thus being very dangerous. SEE DIAGRAM IMAGE OR DOWNLOAD TAB.
    Yes. Fixtures with a Magnetic Ballast (Visible / Removable "Starter"). We provide an Replacement "Starter" (which is actually a fuse) which makes the existing Magnetic Ballast compatible with our LED Tubes. Easy upgrade.
    No. If the fixture has an Electronic Ballast, you must bypass the Ballast and follow the wiring diagram in our Downloads tab.

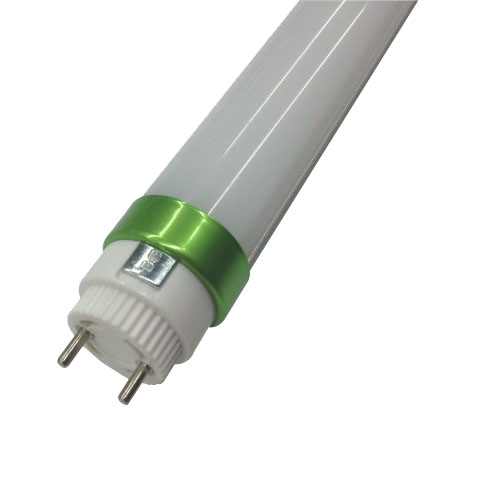

    Product Image
