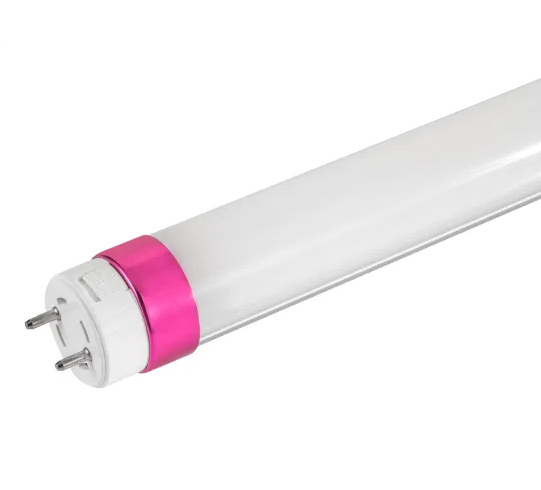

Meat Display LED Tube Light - T8 / 4FT (1200mm)

https://www.dualcom.co.nz/web/image/product.template/347/image_1920?unique=09698bb

$ 45.00$ 51.75 51.75 NZD

$ 45.00

Not Available For Sale

    This combination does not exist.

    Meat display LED tube light is designed to replace Natura Color 76 meat tubes. Widely used in Supermarket and Butchery to maximize the freshness color of meat and other food products. These tubes also reduce cabinet temperatures by 30-40% which saves unnecessary refrigeration costs, while lasting 5 times the lifespan of traditional fluorescent tubes saving maintenance cost. Installation can be very easy as they fit into existing T8 tube fixtures. If the existing fixture has a visible starter then all that is needed to be done is replace the starter with one we supply. If the existing fixture has an Electronic Ballast, then these need to be bypassed - we can assist your installer with the correct wiring procedure. See FAQ or call if you are unfamiliar with LED tube light wiring standards.

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    T8-1200-PNK

    Specifications

    Color Temp Options Pink (Red + White)
    Wattage 18W
    Input Voltage (AC) 100 - 265V
    CRI >95
    Beam Angle Options 150 Degree
    Base Type T8 (tube)
    Dimensions (mm) Ø 30 * 1200
    Material Aluminum | Polycarbonate (PC)
    T8 Tube Wiring Diagram Download
    NO. For a T8 LED tube to work with standard wiring, the tube must have the internal driver one end and a direct short the other. This allows Line or Neutral at one end to flow to the other end of the tube via the fuse. This also means the tube can be installed eitherway without causing a fault. SEE DIAGRAM IMAGE OR DOWNLOAD TAB.
    The issue with wiring to one end only, is that if/when later on the tube is replaced - someone installing the wrong way round, it would cause a short circuit, thus being very dangerous. SEE DIAGRAM IMAGE OR DOWNLOAD TAB.
    Yes. Fixtures with a Magnetic Ballast (Visible / Removable "Starter"). We provide an Replacement "Starter" (which is actually a fuse) which makes the existing Magnetic Ballast compatible with our LED Tubes. Easy upgrade.
    No. If the fixture has an Electronic Ballast, you must bypass the Ballast and follow the wiring diagram in our Downloads tab.
