WAGO 221 Series 5-Way Splicing Connector – 4mm²

WAGO 221 Series 5-Way Splicing Connector – 4mm²

Name: WAGO 221 Series 5-Way Splicing Connector – 4mm²
Price: 69.56 NZD
Availability: OutOfStock

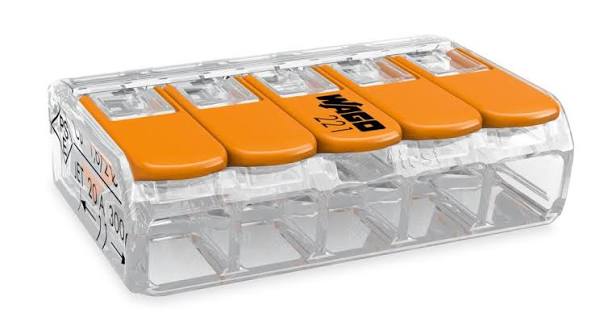

The WAGO 221 Series 5-Way Splicing Connector provides a fast, compact and reliable solution for joining electrical conductors without screws or specialised tools. Using WAGO's proven lever connection system, simply lift the lever, insert the stripped conductor and close the lever to create a secure electrical connection.

Designed to accept solid, stranded and fine-stranded conductors from 0.14–4mm², the 221-415 is particularly useful for installations where different conductor types or sizes need to be connected together. The five-way configuration allows up to five conductors to be joined within a single compact connector.

The transparent housing provides easy visual inspection of conductor insertion, while the compact design makes the connector ideal for use inside junction boxes, electrical enclosures and other space-restricted installations.

Ideal for electrical enclosures, junction boxes, lighting, control systems and general electrical wiring

$ 79.99

Add to cart

Buy now

Add to wishlist

Connector Type	Splice
Termination Method	Spring Cage
Voltage Rating	450V
Current Rating	32A
Rated Surge Voltage	4 kV
Nominal Cross-Section	4 mm²
Cable Size	0.2 ~ 4mm²
Contact Material	Tin Plated
Number of Connections	5
Number of Potentials	1
Insulation Material	Polyamide (PA66)
Operating Temp (max)	+ 85°

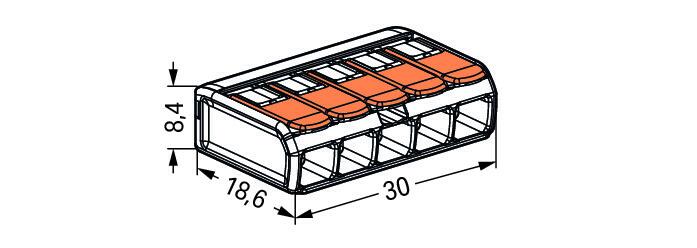

Dimensions	30 * 8.6 * 18.8
