PXSHUNT 500

https://www.dualcom.co.nz/web/image/product.template/411/image_1920?unique=3a880d1

$ 295.65$ 340.00 339.99750000000006 NZD

$ 340.00

Not Available For Sale

    This combination does not exist.

    Monitor all connections direct to battery


    The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

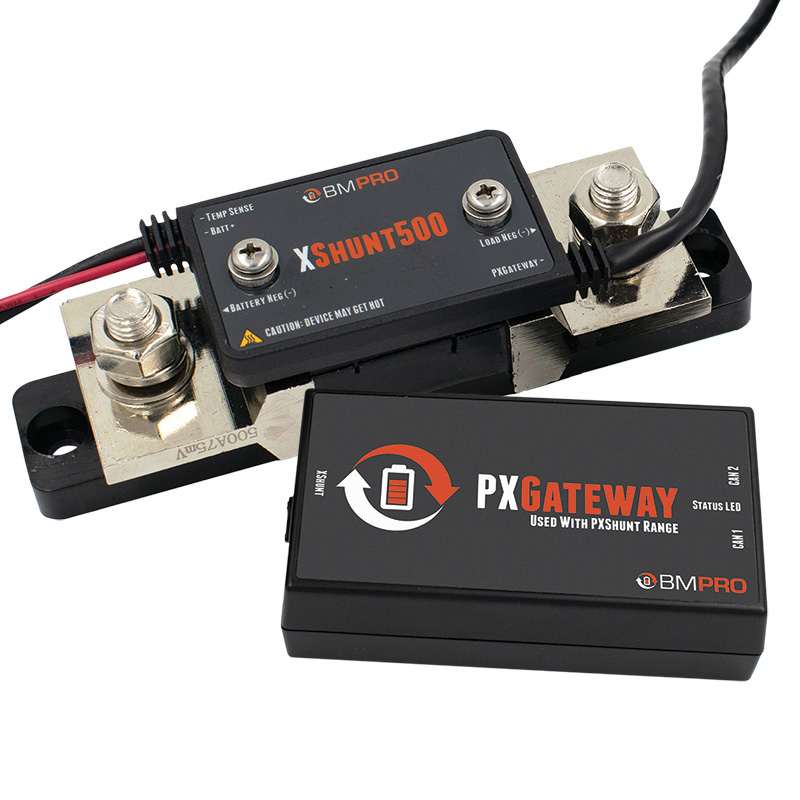

    Made up of two components, the XShunt500 and the PXGateway, adding the PXShunt500 to a BMPRO power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.


    The PXShunt500 also provides your BatteryPlus35, ASPero and J35 with additional information on battery usage so your displays such as the Odyssey, Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.


    The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200AH in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.


    Compatible with J35 / BP35 REV10 and higher

    Contact Us
    BMPRO

    Born by the innovated spirit of our parent company SETEC, with 50 years power solutions in Australia, bred in Melbourne and inpired by the great Australian outdoors. We are number one in RV Power Management. We are BMPRO, your battery management professionals.

    BMPRO-PXSHUNT500

    Specifications

    System Compatibility BP35 (BMS) | J35 (BMS)
    Input Voltage (DC) 8 - 16V
    Voltage Measurement Resolution <20mV
    Current Measurement Range 500A
    Continuous Current Rating 500A
    Current Measurement Resolution <200mA
    Monitored Battery Capacity 1200Ah
    Communication Method Hard Wired | CAN Bus
    Operating Temperature -10°C to 50°C
    Dimensions (mm) PXSHUNT500 : 156 x 46 x 47.5mm | PXGateway : 90 x 52 x 24mm
    Weight (kg) 1
    PXSHUNT500 Manual Download
    A PXSHUNT500 is required for any load or separate charge source going directly to the battery that is over the rated current of the BP35 or J35 System. Typical items fitted directly to batteries in caravans are : Inverters (of any size), diesel or gas heaters, air compressors, portable solar panel or additional solar panels needed to run via a separate solar regulator.

    Accessory Products

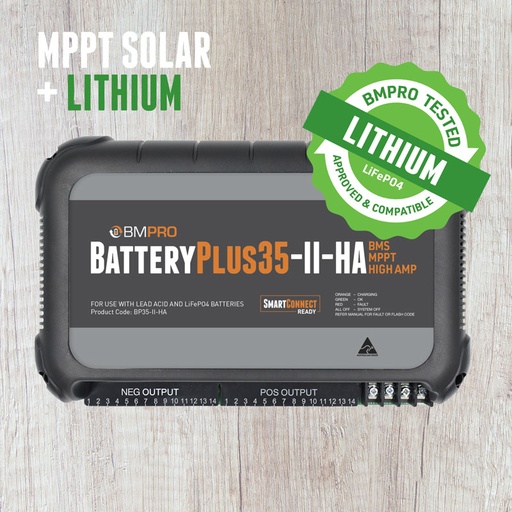

    [BMPRO-BP35PLUS-II-HA] BATTERYPLUS35-II-HA
