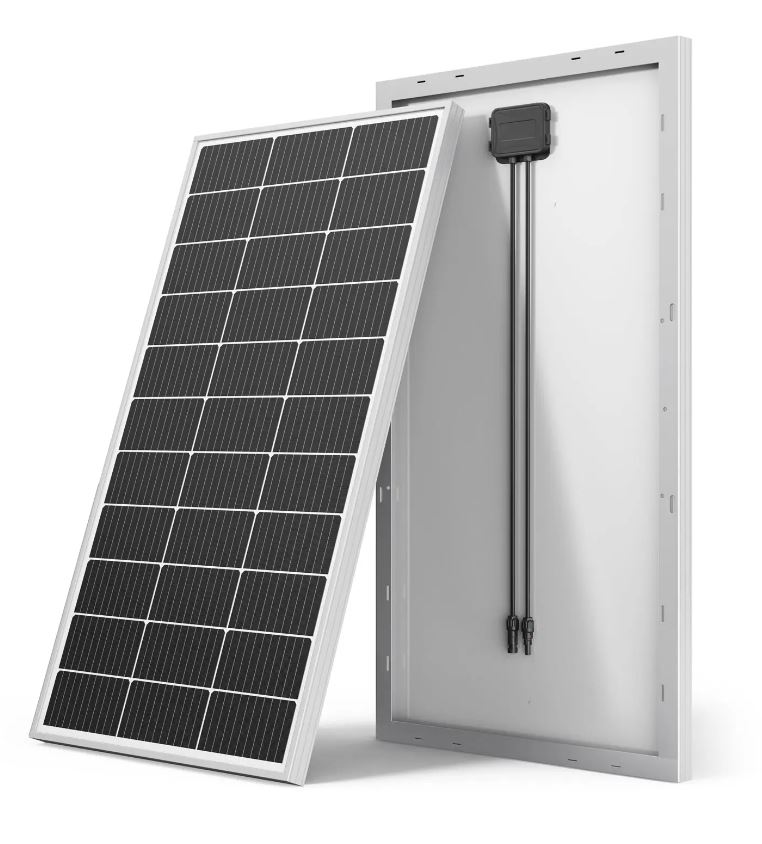

160W PERC MONO (Shingled)

$ 260.00$ 299.00 299.0 NZD

$ 299.00

This combination does not exist.

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehicles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

DUALCOM

Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

SKU: SOL-160W-PERC12-MONO

Specifications


Maximum Power (Pmax)	160W
Voltage (Vmp)	21.5V
Current (Imp)	7.57A
Voltage (Voc)	26.27V
Current (Isc)	7.62A
Module Efficiency	19.75%
Cell Type	MONO PERC
Cable	4mm (Cross Sectional)
Module Dimensions (mm)	670 x 1233 x 35
Weight (Kg)	10.0

What is a PERC Solar Cell?

Passivated Emitter and Rear Contact (PERC) solar cells are modified conventional cells that enable the cells to produce 6 to 12 percent more energy than conventional solar panels. PERC cells have an extra layer within the back side of the cell. This allows some of the sun’s rays to reflect back into the solar cell, giving them another opportunity to be turned into energy.

What is Shingled Technology in solar cells?

Shingled modules have no visible busbars and solar cells are cut into five or six strips and connected with an electrically conductive adhesive. The three key advantages of the shingled solar panel design are to produce more power, improve reliability and are aesthetically pleasing.

Features

PERC Solar cells with Shingle Technology
Reinforced frame with aluminum angle
35mm Frame with a support surface of 1.2mm thickness

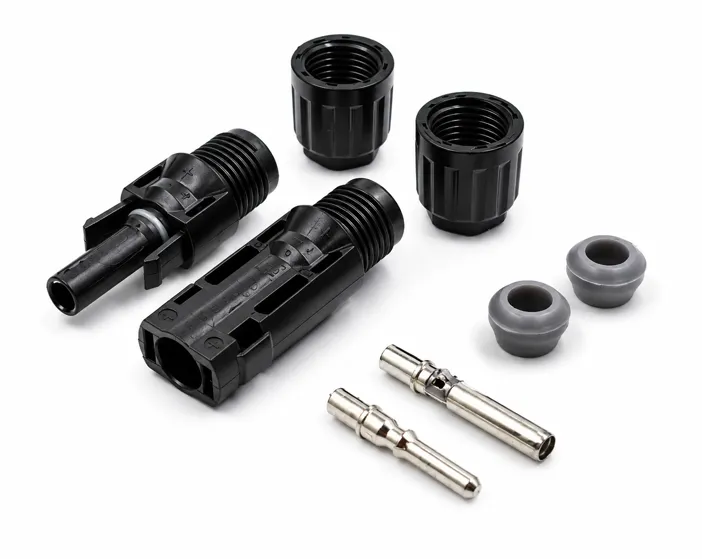

4mm2 Twin Red / Black Cable to MC4 from Diode Box

Advantages

More Power : Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.
Seamless Soldering : Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.
Compact : High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
Reduced system cost : High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
Stability : Enhanced reliability and stability. Significantly reduces hot spot effect.
Reliability : Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.
Performance : 10 year product warranty on materials and workmanship, 25 years linear power output warranty.
