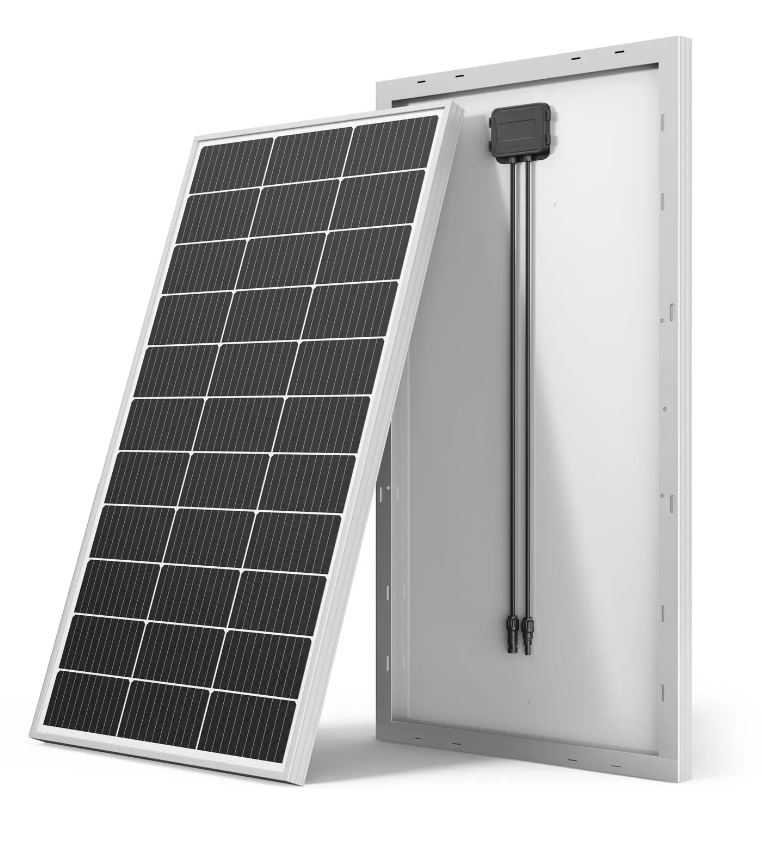

195W Solar Panel (PERC MONO)

$ 286.95$ 329.99 329.9925 NZD

$ 330.00

This combination does not exist.

PERC MONO 10BB (busbar) CELL is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency.

This high power, high-density modules are very robust and suited to mobile vehicles including Caravan, RV and Boating. The 35mm frame gives the panels additional strength in mobile application. 10BB means there are ten busbars in each solar cell. The distance for the PV Cells to reach each busbar is less, outcome being a high efficiency cell structure.

DUALCOM

Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

SKU: SOL-195W-PERC-10BB-MONO

Specifications


Maximum Power (Pmax)	195W
Voltage (Vmp)	19.5V
Current (Imp)	10.0A
Voltage (Voc)	23.3V
Current (Isc)	8.36A
Module Efficiency	19.75%
Cell Type	MONO PERC
Module Dimensions (mm)	670 X 1420 X 35
Weight (Kg)	12.0

What is a PERC Solar Cell?

Passivated Emitter and Rear Contact (PERC) solar cells are modified conventional cells that enable the cells to produce 6 to 12 percent more energy than conventional solar panels. PERC cells have an extra layer within the back side of the cell. This allows some of the sun’s rays to reflect back into the solar cell, giving them another opportunity to be turned into energy.
