BMPRO - ASPERO

https://www.dualcom.co.nz/web/image/product.template/429/image_1920?unique=1377666

$ 956.52$ 1,100.00 1099.998 NZD

$ 1,100.00

Not Available For Sale

    This combination does not exist.

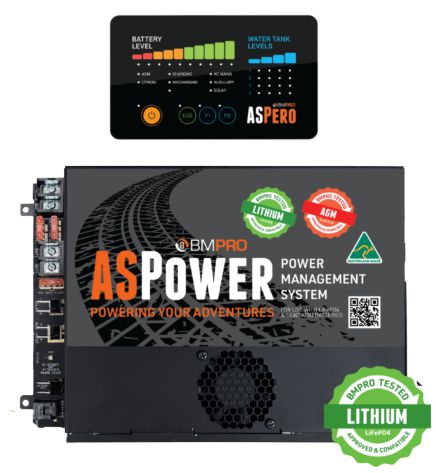

    BMPRO’s ASPERO is a combined power management system and information display designed for recreational vehicles. The ASPERO powers your loads, charges your battery and provides you with live and easy to understand information about your battery status and water tank levels.

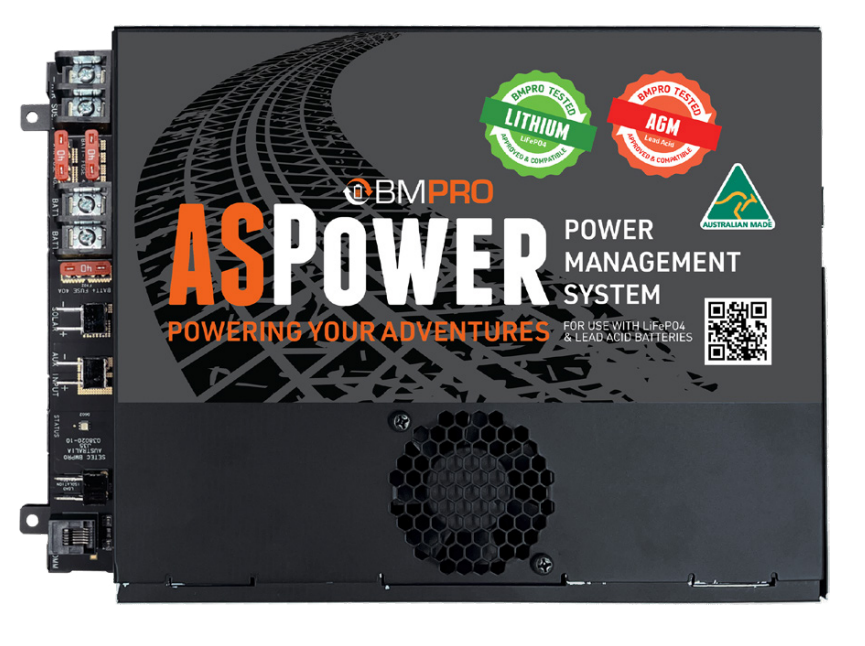

    The system includes ASPower, a lithium battery-compatible Power Management System that operates from 240V AC mains power supply, towing vehicle auxiliary and solar panels to simultaneously power caravan loads and charge the caravan battery. It employs intelligent charging algorithms, ensuring optimal battery health. Automatic battery preservation mode saves remaining battery power until you’re ready and able to charge.

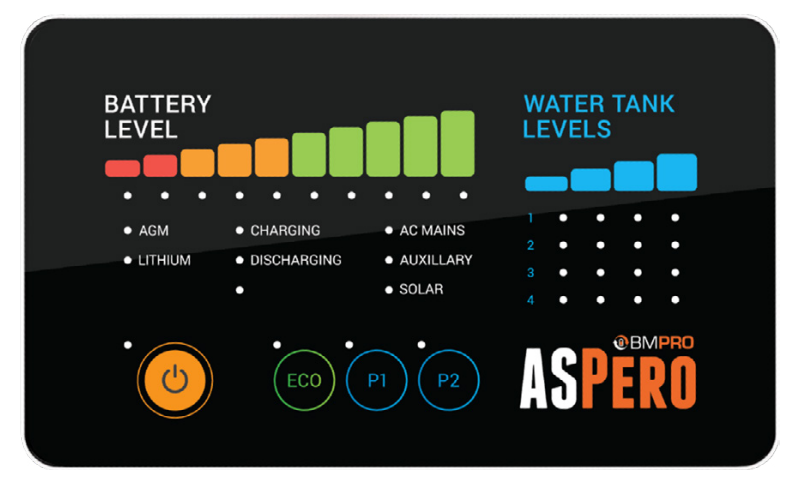

    Also included is the ASDisplay, an information display designed to show you with current information about your battery and connected loads, including the battery level of the connected battery, the charging/discharging state, battery chemistry, active power sources.

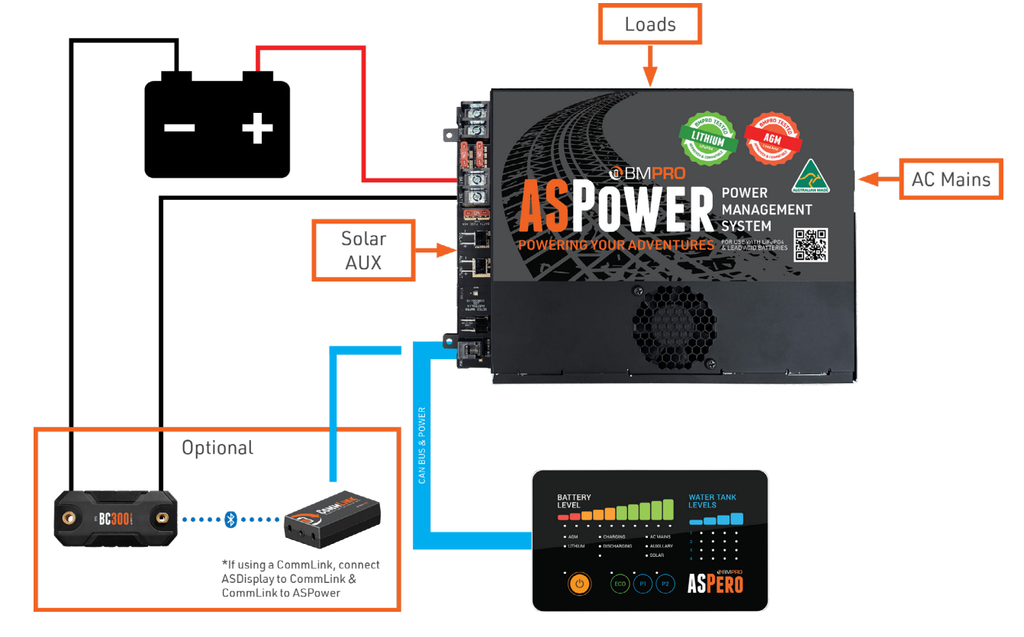

    To get the most from your ASPERO system it may also be used with the following products (sold separately) from the BMPRO range:

    • BC300 + CommLink External Shunt for integration of additional accessories and high current loads such as inverters.

    • Dipper water level indicators to monitor the water levels of up to 4 water tanks.

    Contact Us
    BMPRO

    Born by the innovated spirit of our parent company SETEC, with 50 years power solutions in Australia, bred in Melbourne and inpired by the great Australian outdoors. We are number one in RV Power Management. We are BMPRO, your battery management professionals.

    BMPRO-ASPERO

    Specifications

    Charge Current (Solar) 27A
    Charge Type MPPT
    Max Solar Input (Watts) 450W
    Input Voltage (DC AUX) 10 - 16V
    Input Voltage (AC) 230-240vAC
    Charge Current (AC) 30A
    Input Voltage (Solar) 15 - 25V (max)
    Battery Voltage 12V
    Battery Chemistry Flooded / AGM / WET | Lithium (LiFeP04)
    Battery Selection Mode Manual
    Smart Connect Ready Yes
    Dimensions (mm) 307 x 206 x 68 (BMS) | 150 x 90 x 15 (Display)
    Cooling Thermally Controlled Fan
    Weight (Kg) 2
    ASPERO - User Manual Download
    ASPERO - ASPower BMS Install Download
    ASPERO - ASDisplay Install Download
    ASPERO - ASPower Datasheet Download
    ASPERO - ASDisplay Datasheet Download
    The load may be faulty, activating the protective electronic fuse and turning the load off. If this is the case, the LED Status Indicator on the ASPower will flash a solid red. Should you encounter any faulty loads, please contact your caravan dealership.
    All loads will power down, but the ASDisplay will still be in use if the ASPower was put into ECO Mode. The ASPower will be put into ECO Mode if: The ECO Mode button on the ASDisplay has been pressed. This turns off power to all caravan loads connected to the ASPower, except output 14. Check if there is a green LED light next to the ECO Mode button on the ASDisplay. If there is, press the ECO Mode button again to exit ECO Mode. Battery voltage is very low. The ASPower will enter ECO Mode to conserve remaining battery voltage, which will disable power to all caravan loads connected to the ASPower. Connect the ASPower to a power source and begin battery charging.
    Check the following: The battery connections are tight and not loose or corroded. Battery polarity: red lead is positive, black lead is negative. The battery fuse on the ASDisplay is fitted and not blown. The correct value is 40A.

    Complete power management & monitoring system for RVs


    • Monitor battery status & water tank levels
    • Multi-input – AC/Solar/DC
    • Charges all RV battery types


    *Battery chemistry can only be altered or changed with the use of an ASDisplay

    Accessory Products

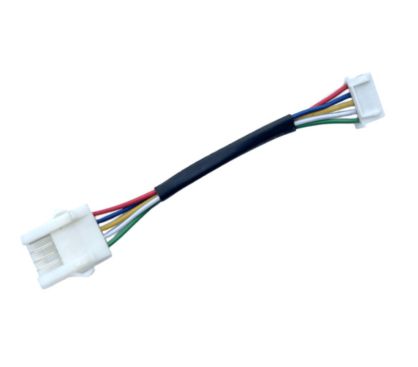

    [BMPRO-ASPER-DIPCABLE] BMPRO ASPERO Dipper Cable Adapter
    BMPRO ASPERO Dipper Cable Adapter

    $ 20.00 $ 17.39

    $ 1,100.00

    Not Available For Sale

    Out of stock

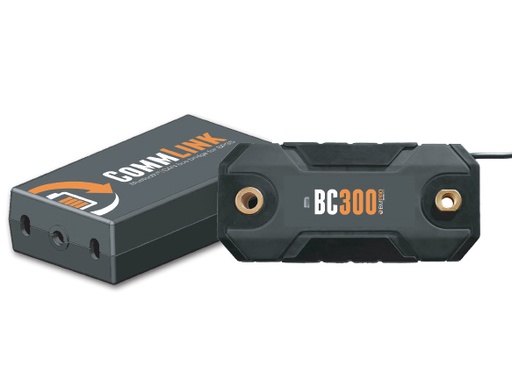

    [BMPRO-BC300+COMLINK] BC300 + COMMLINK
