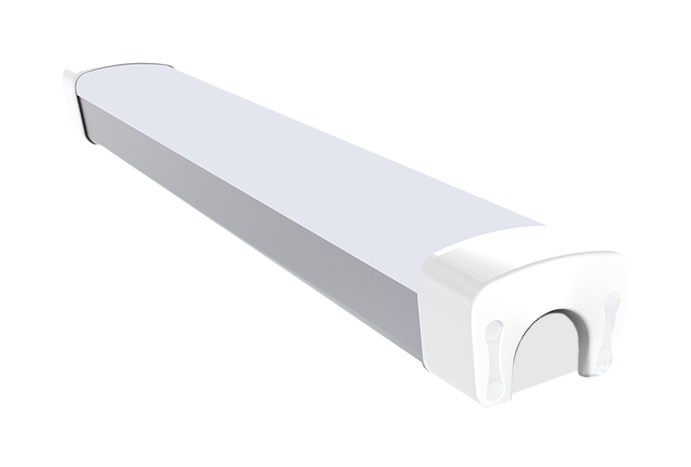

ELV (GEN4) IP65 Batten Light - 300MM

http://www.dualcom.co.nz/web/image/product.template/229/image_1920?unique=53cbc86

$ 91.30$ 105.00 104.99499999999999 NZD

$ 105.00

Not Available For Sale

    This combination does not exist.

    These ELV Batten Lights are suited to a number of applications where 12V or 24VDC is used - such as battery / off-grid systems or where step down transformers are utilized to make routine maintenance easy, especially if the technician is not a certified AC electrician.


    Wide DC Input Voltage, IP65 Waterproof, Impact Resistant IK08. Integrated LED PCB, "optional" zero gap surface mount brackets.


    Typical applications include : Public Utility Block, Off-Grid Battery Systems, Engine Room Lighting, General Extra Low Voltage DC applications.

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    EXE300-10W-5K-V2

    Specifications

    Color Temp Options 5000K (daylight)
    Wattage 10W
    Input Voltage (DC) 10-32V
    Lumens 1000
    Beam Angle Options 150 Degree
    Dimmable No
    IP Grade IP65
    IK Rating IK08
    Dimensions (mm) 300L * 90W * 74H
    DATASHEET (ELV GEN4) Download
    IK Rating or “Impact Protection” (the K is from 'Kinetic' to differentiate from IP rating) is defined in international standards and indicates the level of resistance an electrical enclosure provides against mechanical impact.
    Protected against 5 joules impact - Equivalent to impact of 1.7kg mass dropped from 300mm above impacted surface.
    Extra low voltage (ELV) means voltage of 50V or less (AC RMS), or 120V or less (ripple-free DC).
    No, However it is important when installing with a step down transformer to make sure the transformer is SELV compliant (Separated or Safety Extra Low Voltage).
    Separated or Safety Extra Low Voltage (SELV) system is an extra low voltage electrical circuit that is electrically separated from other circuits that carry higher voltages, isolated from earth and from the protective earth conductors of other circuits.

    • Extra Low Voltage (ELV)

    • Wide Input Voltage (10-32vDC)

    • IK08 Impact Resistant

    • IP65 Waterproof Rating

    • High Lumen Per Watt
