Name: Solar Camera Power System – 120Ah Lithium | 30A – 316SS IP66 Enclosure
SKU: SCPS-316SS-120-5040-30A
Availability: OutOfStock

Dualcom 316 Stainless Steel Solar Camera Power System is a professionally engineered off-grid solution designed to provide reliable, autonomous power for CCTV cameras, communications equipment and other remote monitoring devices.

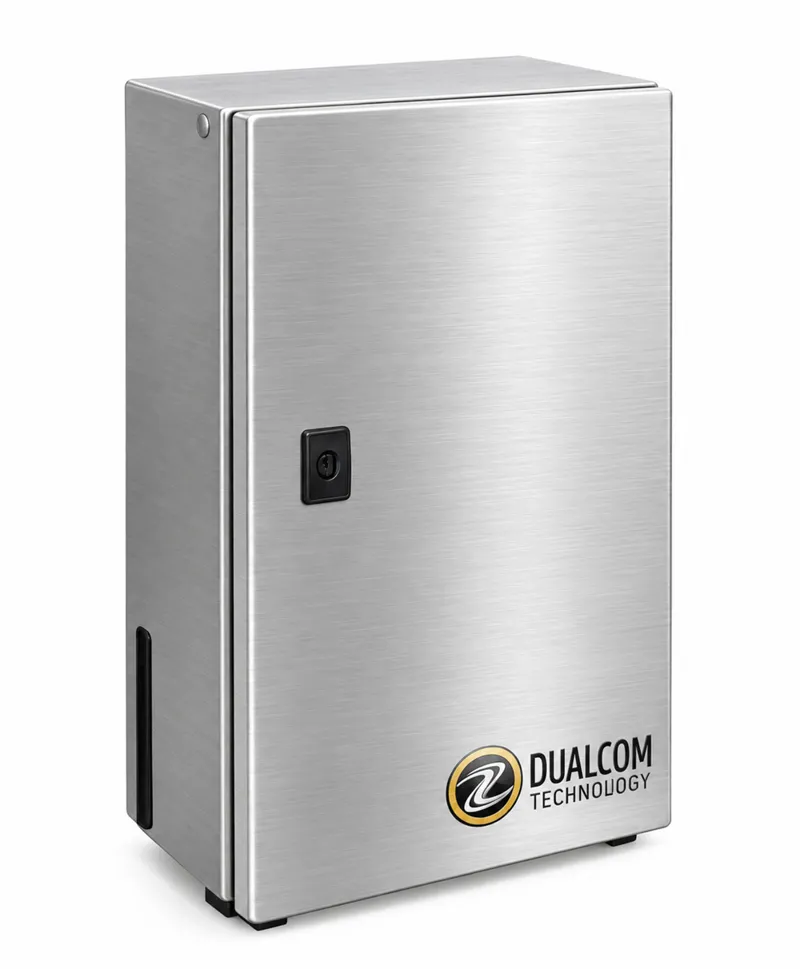

Each system is housed within a heavy-duty IP66 316SS enclosure and is fully assembled, configured and tested in-house by Dualcom before dispatch. Designed for demanding outdoor environments, it combines premium Victron Energy charging and monitoring equipment with a 120Ah lithium battery, fused DC distribution and remote system connectivity.

This unit can also be equipped with an optional DDR-120A-48V DCDC converter for powering 48V routers using POE cameras.

Remote Monitoring and Equipment Control

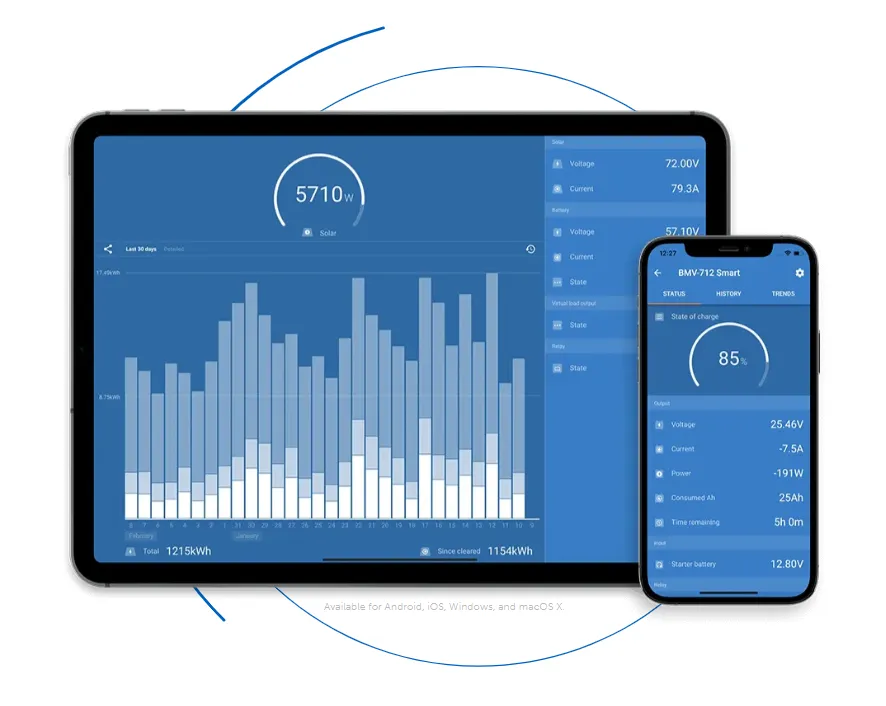

The integrated Victron Cerbo GX can connect to an existing internet connection through its LAN port or Wi-Fi. Once connected, authorised users can securely access the system through the Victron Remote Management (VRM) Portal from anywhere with an internet connection.

The VRM Portal provides remote visibility of important system information, including:

Battery state of charge
Battery voltage and current
Solar charging performance
Historical energy and charging data
System alarms and operational status

The Cerbo GX also provides two programmable 6A relay outputs. When correctly configured and interfaced with the connected equipment, these relays can be used to remotely switch compatible devices or circuits on and off. This may be useful for remotely restarting a camera, router or communications device without requiring a site visit.

Please note that an active internet connection is required for remote VRM monitoring and control. Cellular modem, SIM card and data connection are not included unless specified.

Applications

CCTV camera systems
ANPR cameras
Security and surveillance equipment
Remote communications
Telemetry systems
Environmental monitoring
Gate and access-control equipment
Temporary site monitoring
Infrastructure monitoring

Dualcom can customize each system to suit the site, connected equipment and required operating time. Available options include alternative battery capacities, solar panel sizes, communications equipment, enclosure sizes and customer-specific power distribution or control configurations.

Add to wishlist

Battery Voltage	12V
Battery Capacity	120Ah
Input Voltage (Solar)	150V (max)
Charge Current (Solar)	30A
Charge Type	MPPT
Max Solar Input (Watts)	400W (12V) \| 1600W (24V)
Conversion Efficiency (MPPT)	98%
Battery Chemistry	Lithium (LiFeP04)
Smart Connect Ready	VE-Direct \| Bluetooth
IP Grade	IP66
Weight (Kg)

Enclosure Size	500 x 400 x 250
Enclosure Material	316 Stainless Steel
Enclosure IP Rating	IP66
Cooling Method	Passive Cooling

Connection Points SCPS 30A	Download

Heavy-duty 316SS IP66 enclosure
Professionally engineered and assembled in New Zealand
Premium Victron Energy charging and monitoring components
120Ah LiFePO₄ lithium battery
Intelligent battery and solar monitoring
Secure access through the Victron VRM Portal
Real-time remote system monitoring
Historical performance data and system alarms
Two programmable 6A relay outputs
Remote switching or restarting of compatible equipment
Fused 12V DC power distribution
Optional 12 to 48V DCDC Meanwell DIN Rail PSU
Suitable for CCTV, communications, telemetry and remote infrastructure applications
Integrated Components
IP66 316SS enclosure – 500H × 400W × 250Dmm
Victron Cerbo GX communication and monitoring controller
Victron SmartSolar MPPT 30/100 Solar Charge Controller
Victron SmartShunt Battery Monitor
120Ah 12V LiFePO₄ lithium battery
4-way fused 12V DC distribution block
4-pole negative busbar
