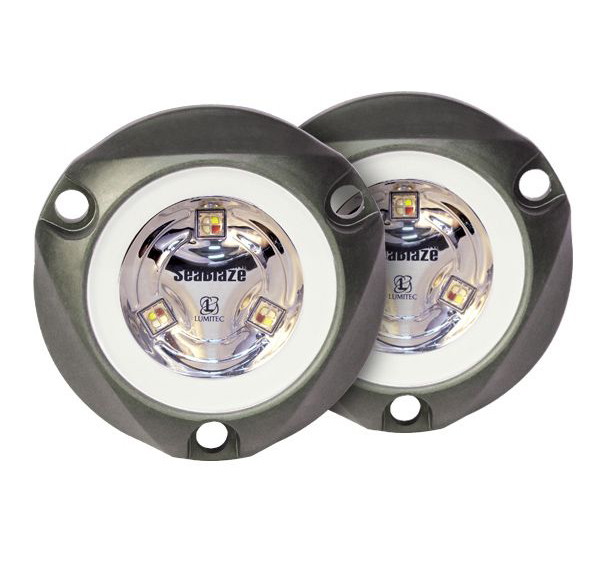

Lumitec SeaBlaze Mini (Pair)

Name: Lumitec SeaBlaze Mini (Pair)
SKU: 101246-SBLAZE-MINI-B
Price: 720.86 NZD
Availability: OutOfStock

Add a brilliant blue glow beneath your boat with the Lumitec SeaBlaze Mini LED Underwater Lights. Supplied as a pair, these compact surface-mounted lights provide excellent underwater illumination for smaller trailer boats, skiffs, dinghies and other recreational vessels.

Each SeaBlaze Mini features a fixed blue, non-dimming LED output that creates a vivid and distinctive appearance around the stern or transom. The lights are fully self-contained, with no external drivers or control modules required, and operate from a standard on/off switch.

Designed for permanent underwater installation, the SeaBlaze Mini combines a marine-grade anodised aluminium housing with a tough heat-tempered glass lens. Its completely sealed IP68 construction provides dependable protection in demanding marine environments.

The compact surface-mount design requires only a small 6.35mm cable hole through the hull for each light. Electronic isolation removes the need to bond the light housing, helping simplify installation and protect the vessel’s electrical system.

Compatible with both 12V and 24V DC systems, this two-light package provides a durable and cost-effective solution for adding blue underwater illumination to smaller vessels.

$ 828.99

Add to cart

Buy now

Add to wishlist

Color Temp Options	BLUE
Wattage	12W (each)
Input Voltage (DC)	10-30V
Dimmable	No
Timed Toggled Protocol (TTP)	No
Base Type	Surface Mount
Color Finish	Grey
IP Grade	IP68
Material	Anodized Aluminum
Diameter (mm)	Ø 76
Depth (mm)	15

INSTRUCTIONS (MINI)	Download

Can you recommend a good sealant when installing Lumitec Underwater Lights?

Use 3M 4200 adhesive or equivalent underwater adhesive. Coat the entire back of the housing including screws stem, plastic strain relief and approx 50mm of the cable. DO NOT OVER TIGHTEN! Secure in place and let the adhesive sealant do its job.

Should I be using an anti-fouling paint or coating?

Yes, for LUMITEC bronze underwater lights you may paint the housing with a bronze compatible Anti-Fouling paint, for LUMITEC Anodized Aluminum housing use a aluminum compatible Anti-Fouling paint or suitable prop-speed product.

What is Lumitec's TTP protocol?

TTP, or Timed Toggle Protocol, is a beautifully simple solution to an otherwise vexing problem: How to provide sophisticated features like dimming and color change with no external control modules, using any standard off-the-shelf switch. Frequently emulated to the point of being almost an industry standard, Lumitec’s innovative TTP control uses brief “off/on” toggles of the light’s power switch to select an intensity level or cycle through output colors.
