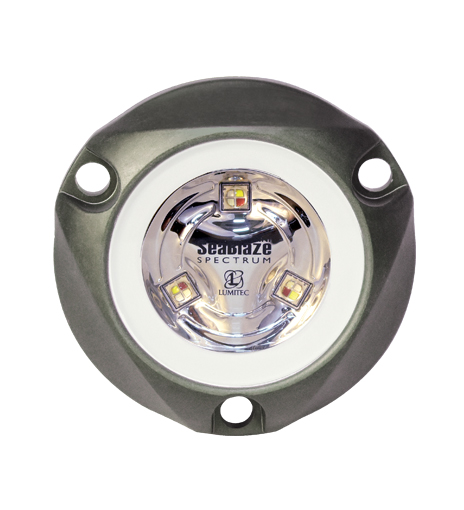

Lumitec SeaBlaze Mini SPECTRUM

https://www.dualcom.co.nz/web/image/product.template/188/image_1920?unique=bf7e4c4

$ 565.22$ 650.00 650.003 NZD

$ 650.00

Not Available For Sale

  • Color Temp

This combination does not exist.

The compact SeaBlaze Mini Spectrum delivers a nearly limitless palette of intense, vivid colors, complemented by a relaxing color cycle mode. For its size the Mini packs the greatest value punch in LED underwater lighting! Leveraging many of the technologies utilized in the world’s most popular underwater light, the SeaBlaze3, ensuring years of trouble free service. Perfect for smaller trailer boats, skiffs, or dinghies.

Contact Us
LUMITEC

Lumitec is committed to delivering performance, reliability, quality, and unparalleled support in all facets of our products and our business. Our reputation in this area among top builders, resellers, integrators, and end users speaks for itself.

101832-SBLAZE-Mini-SPECTRUM

Specifications

Color Temp Options RGBW (Full Spectrum)
Wattage 10.5W
Input Voltage (DC) 10-30V
Dimmable No
Timed Toggled Protocol (TTP) Yes
Base Type Surface Mount
Color Finish Grey
IP Grade IP68
Material Anodized Aluminum
Diameter (mm) Ø 76
Depth (mm) 15
INSTRUCTIONS (MINI) Download
Use 3M 4200 adhesive or equivalent underwater adhesive. Coat the entire back of the housing including screws stem, plastic strain relief and approx 50mm of the cable. DO NOT OVER TIGHTEN! Secure in place and let the adhesive sealant do its job.
Yes, for LUMITEC bronze underwater lights you may paint the housing with a bronze compatible Anti-Fouling paint, for LUMITEC Anodized Aluminum housing use a aluminum compatible Anti-Fouling paint or suitable prop-speed product.
TTP, or Timed Toggle Protocol, is a beautifully simple solution to an otherwise vexing problem: How to provide sophisticated features like dimming and color change with no external control modules, using any standard off-the-shelf switch. Frequently emulated to the point of being almost an industry standard, Lumitec’s innovative TTP control uses brief “off/on” toggles of the light’s power switch to select an intensity level or cycle through output colors.
Multi-color or multi-output lights may incorporate Lumitec’s TTP technology. To change the output color or output mode of a light, briefly toggle the light OFF then immediately back ON. The light will cycle to the alternate or next output color Turn Switch to “On” position and wait for four seconds until the light ramps up to full intensity. Toggle switch “Off/On” quickly to change modes. Once for each mode.

  • Cost-Effective Solution

  • RGBW Spectrum

  • Perfect for Bay Boats and Skiffs

  • Anodized Aluminum Construction

  • 3 Year Warranty

Alternative Products

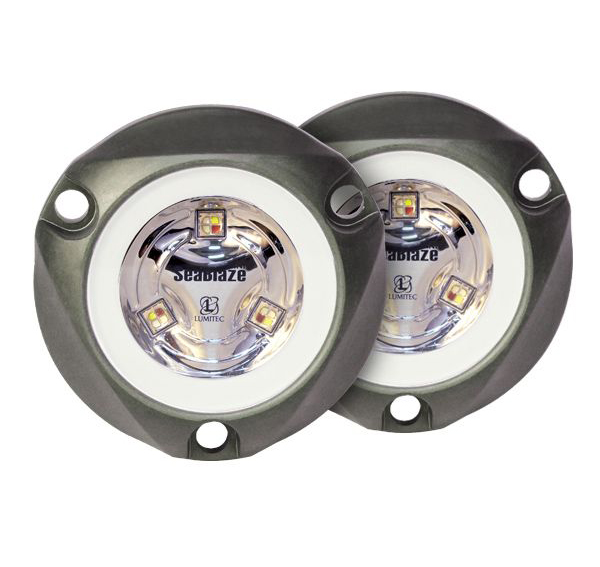

[101246-SBLAZE-MINI-B] Lumitec SeaBlaze Mini (Pair)
