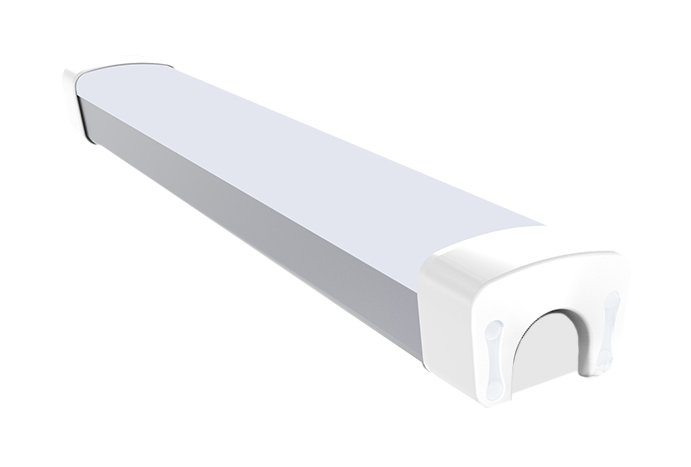

ELV (GEN4) IP65 Batten Light - 300MM (Sensor + Dimming)

ELV (GEN4) IP65 Batten Light - 300MM (Sensor + Dimming)

Name: ELV (GEN4) IP65 Batten Light - 300MM (Sensor + Dimming)
SKU: EXE300-10W-5K-V2-SENS-DIM
Price: 143.47 NZD
Availability: InStock

The ELV GEN4 300mm LED Batten with Microwave Sensor and Dimming is a compact, intelligent lighting solution designed for 12V and 24V DC electrical systems. Combining high-efficiency LED technology with an integrated microwave motion sensor, this commercial-grade batten provides automatic, configurable illumination for off-grid, industrial, marine and utility applications.

Operating across a wide 10–32V DC input range, the GEN4 batten is ideal for battery-powered installations, solar energy systems and applications where extra-low-voltage lighting is preferred. Its integrated microwave sensor detects movement and automatically controls the light according to the configured settings, reducing unnecessary power consumption when an area is unoccupied.

Using the optional remote control (sold separately), the sensor can be configured to operate during both day and night or only during darkness. Detection area, illumination time and dimming settings can also be adjusted to suit the installation, providing greater flexibility than conventional motion-activated lighting.

Producing 1,000 lumens from just 10W, the batten delivers bright, efficient 5000K daylight illumination with a wide 150° beam angle for excellent light distribution.

Built for demanding environments, the robust aluminum and polycarbonate construction features IP65 ingress protection against dust and water jets, together with IK08 impact resistance. This makes the fitting particularly suitable for public amenities, equipment rooms, marine applications and exposed service areas.

$ 164.99

Add to cart

Buy now

Add to wishlist

Color Temp Options	5000K (daylight)
Wattage	10W
Input Voltage (DC)	10-32V
Lumens	1000
CRI	>80
Beam Angle Options	150 Degree
Dimmable	Yes
Base Type	Surface Mount
Color Finish	White
IP Grade	IP65
IK Rating	IK08
Dimensions (mm)	300 * 86 * 74
Material	Aluminum \| Polycarbonate (PC)

DATASHEET (ELV GEN4)	Download
Sensor+Dimming Operation	Download

What is an IK Rating?

IK Rating or “Impact Protection” (the K is from 'Kinetic' to differentiate from IP rating) is defined in international standards and indicates the level of resistance an electrical enclosure provides against mechanical impact.

What is ELV?

Extra low voltage (ELV) means voltage of 50V or less (AC RMS), or 120V or less (ripple-free DC).

What is IK08?

Protected against 5 joules impact - Equivalent to impact of 1.7kg mass dropped from 300mm above impacted surface.

Do these 10-32V BattenPRO units require an Earth?

No, However it is important when installing with a step down transformer to make sure the transformer is SELV compliant (Separated or Safety Extra Low Voltage).

If using a step down transformer to power these, what does the term "SELV" mean?

Separated or Safety Extra Low Voltage (SELV) system is an extra low voltage electrical circuit that is electrically separated from other circuits that carry higher voltages, isolated from earth and from the protective earth conductors of other circuits.
