Name: ELV (GEN4) IP65 Batten Light - 300MM (Sensor + Dimming)
Price: 143.47 NZD
Availability: OutOfStock

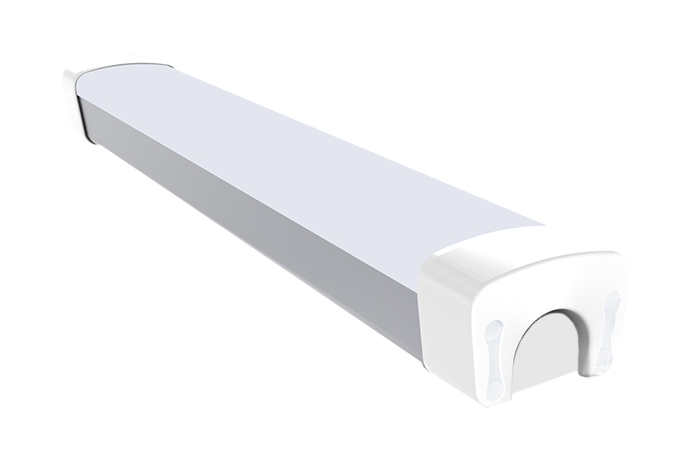

ELV (GEN4) 300MM Batten Light w/microwave sensor - 10-32VDC, 1000LM, 10W, CCT5000K

$ 164.99

Add to cart

Buy now

Add to wishlist

ELV GEN4 Batten Light with Built-In Remote Controlled Micro Wave Sensor + Dimming. Suited to a number of applications where 12V or 24vDC is used - such as battery / off-grid systems or where step down transformers are utilized to make routine maintenance easy, especially if the technician is not a certified AC electrician.

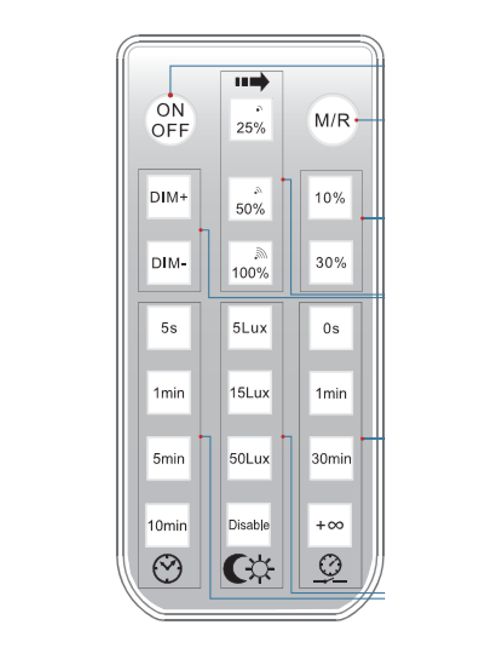

The built-in Micro Wave sensor can be configured to work during day and night hours, or just night if day use is not required. Time settings and Dimming is also configurable along with detection area via Remote Control (sold separately) - Refer to downloads for operation.

Wide DC Input Voltage, IP65 Waterproof, Impact Resistant IK08. Integrated LED PCB, "optional" zero gap surface mount brackets.

Typical applications include : Public Utility Block, Off-Grid Battery Systems, Engine Room Lighting, General Extra Low Voltage DC applications.

Color Temp Options	5000K (daylight)
Wattage	10W
Input Voltage (DC)	10-32V
Lumens	1000
CRI	>80
Beam Angle Options	150 Degree
Dimmable	Yes
Base Type	Surface Mount
Color Finish	White
IP Grade	IP65
IK Rating	IK08
Dimensions (mm)	300 * 86 * 74
Material	Aluminum \| Polycarbonate (PC)

DATASHEET (ELV GEN4)	Download
Sensor+Dimming Operation	Download

What is an IK Rating?

IK Rating or “Impact Protection” (the K is from 'Kinetic' to differentiate from IP rating) is defined in international standards and indicates the level of resistance an electrical enclosure provides against mechanical impact.

What is ELV?

Extra low voltage (ELV) means voltage of 50V or less (AC RMS), or 120V or less (ripple-free DC).

What is IK08?

Protected against 5 joules impact - Equivalent to impact of 1.7kg mass dropped from 300mm above impacted surface.

Do these 10-32V BattenPRO units require an Earth?

No, However it is important when installing with a step down transformer to make sure the transformer is SELV compliant (Separated or Safety Extra Low Voltage).

If using a step down transformer to power these, what does the term "SELV" mean?

Separated or Safety Extra Low Voltage (SELV) system is an extra low voltage electrical circuit that is electrically separated from other circuits that carry higher voltages, isolated from earth and from the protective earth conductors of other circuits.
