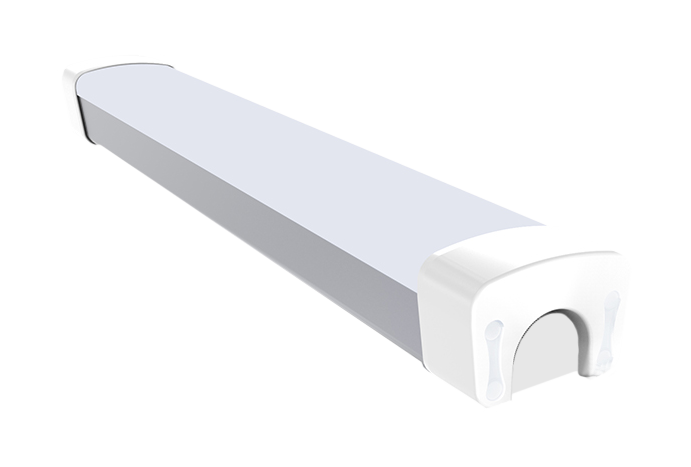

ELV (GEN4) IP65 Batten Light - 600MM (SENSOR)

http://www.dualcom.co.nz/web/image/product.template/340/image_1920?unique=7567dc2

$ 182.61$ 210.00 210.00150000000002 NZD

$ 210.00

Not Available For Sale

    This combination does not exist.

    ELV GEN4 Batten Light with Built-In Micro Wave Sensor. Suited to a number of applications where 12V or 24vDC is used - such as battery / off-grid systems or where step down transformers are utilized to make routine maintenance easy, especially if the technician is not a certified AC electrician.

    The built-in Micro Wave sensor can be configured to work during day and night hours, or just night if day use is not required. Time is also configurable along with detection area - Refer to downloads for operation. Wide DC Input Voltage, IP65 Waterproof, Impact Resistant IK08. Integrated LED PCB, "optional" zero gap surface mount brackets.

    Typical applications include : Public Utility Block, Off-Grid Battery Systems, Engine Room Lighting, General Extra Low Voltage DC applications.

    Contact Us
    DUALCOM

    Dualcom Technology is an Importer/Distributor of Lighting and Solar Energy products. Established 2009 the team is focused on product solutions for Commercial, RV and Marine industries.

    EXE600-20W-5K-V2-SENS

    Specifications

    Color Temp Options 5000K (daylight)
    Wattage 20W
    Input Voltage (DC) 10-32V
    Lumens 2000
    CRI >80
    Beam Angle Options 150 Degree
    Dimmable No
    Base Type Surface Mount
    Color Finish White
    IP Grade IP65
    IK Rating IK08
    Dimensions (mm) 600 * 86 * 74
    Material Aluminum | Polycarbonate (PC)
    DATASHEET (ELV GEN4) Download
    IK Rating or “Impact Protection” (the K is from 'Kinetic' to differentiate from IP rating) is defined in international standards and indicates the level of resistance an electrical enclosure provides against mechanical impact.
    Protected against 5 joules impact - Equivalent to impact of 1.7kg mass dropped from 300mm above impacted surface.
    Extra low voltage (ELV) means voltage of 50V or less (AC RMS), or 120V or less (ripple-free DC).
    No, However it is important when installing with a step down transformer to make sure the transformer is SELV compliant (Separated or Safety Extra Low Voltage).
    Separated or Safety Extra Low Voltage (SELV) system is an extra low voltage electrical circuit that is electrically separated from other circuits that carry higher voltages, isolated from earth and from the protective earth conductors of other circuits.

    • ELV (extra low voltage) Input

    • Wide Input Voltage (10-32vDC)

    • Built-In Microwave Sensor

    • Can be configured to work during day and night hours

    • High Lumen Output

    • IK08 Impact Resistant

    • IP65 Waterproof Rated
